Omron CP1W-8ET1 — PLCs (Programmable Logic Controllers)

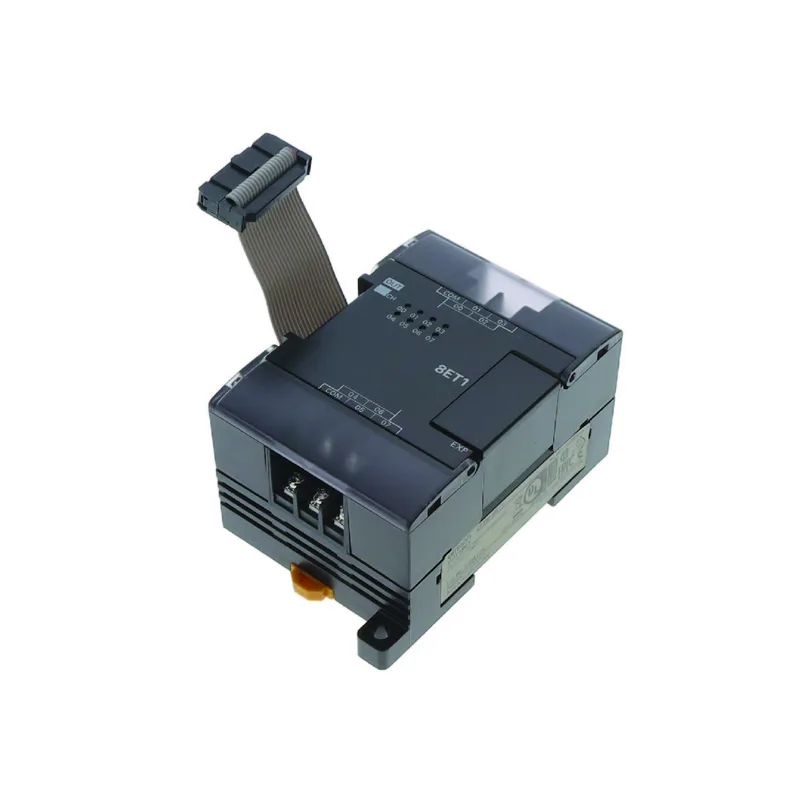

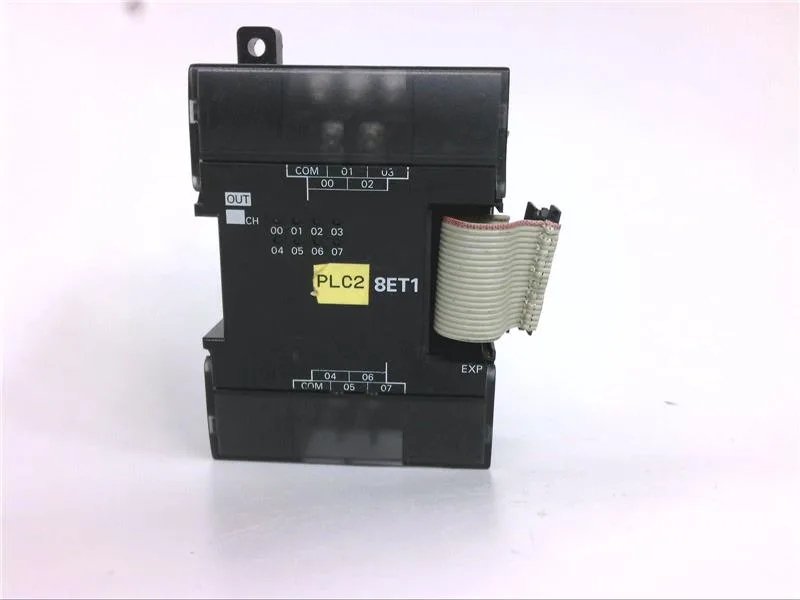

Omron CP1W-8ET1 Output Module, 8 Solid State, DIN Rail

MPNCP1W-8ET1
Active

Omron CP1W series output module, CP1W-8ET1, 8 solid state outputs, screw terminal, DIN rail mount, CE, CSA, Lloyd, NK, UL approved.

$65.00Ref. price · indicative, final on quote
Omron CP1W-8ET1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1W-8ET1 — Identification
ParameterValue
SeriesCP1W
CP1W-8ET1 — I/O
ParameterValue
Outputs (count and type)8 - Solid State
CP1W-8ET1 — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal
CP1W-8ET1 — Approvals
ParameterValue
Approvals / certificationsCE, CSA, Lloyd, NK, UL
CP1W-8ET1 — Other specifications
ParameterValue
TypeOutput Module

Product details

8 solid-state outputs on a DIN-rail slice

The Omron CP1W-8ET1 is an output module with 8 solid state outputs, terminated via screw terminals and mounted on a DIN rail. It is designed for use with the CJ and CP1 series PLCs, making it a direct-fit expansion slice for those controller families.

Approvals and lifecycle status

The CP1W-8ET1 carries approvals from CE, CSA, Lloyd, NK, and UL, covering European, North American, and marine classification society requirements.

Sourcing and compatibility

The module is compatible with CP1H PLCs as a local expansion unit, connecting via the expansion bus on the right side of the CPU.

Frequently asked questions

How can I order the CP1W-8ET1 or check stock?

The CP1W-8ET1 is sourced to order against an RFQ through independent distribution.

Is CP1W-8ET1 compatible with CP1H PLC?

Yes, the CP1W-8ET1 is compatible with CP1H PLCs as a local expansion module, connecting via the expansion bus on the right side of the CPU.

What is the difference between CP1W-8ET1 and CP1W-8ET?

The CP1W-8ET1 is a solid state output module, while the CP1W-8ET is a transistor output module. Both have 8 outputs and screw terminals, but the output type differs — solid state vs transistor.
