Omron CP1W-MAD11 — PLCs (Programmable Logic Controllers)

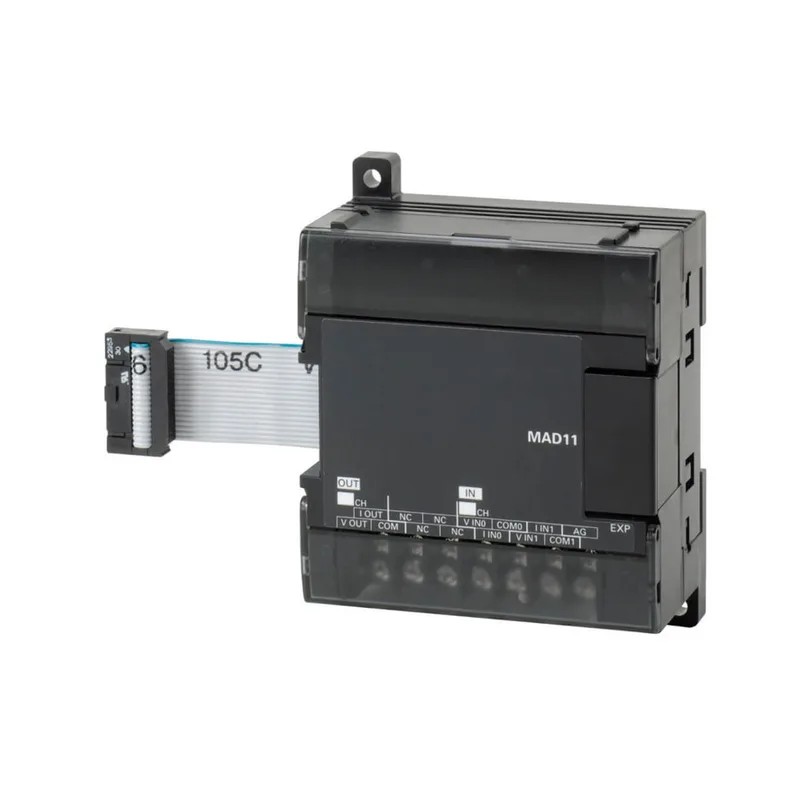

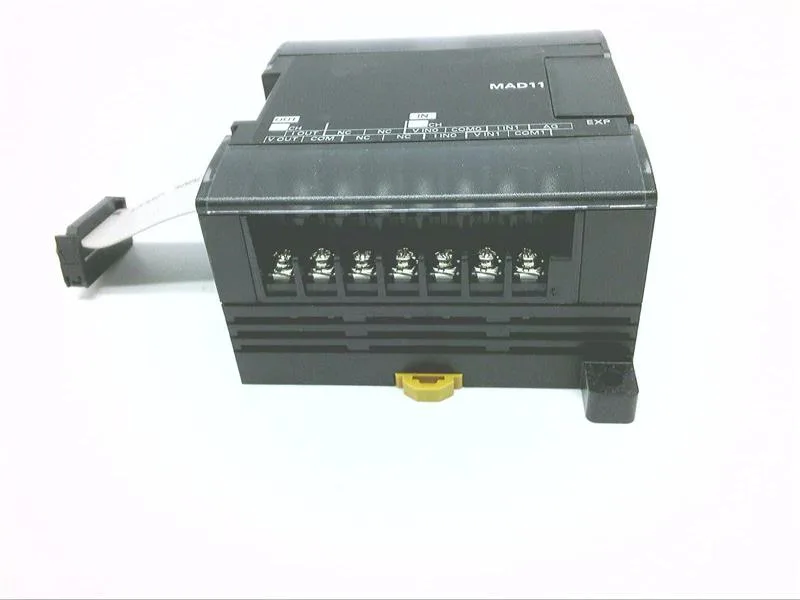

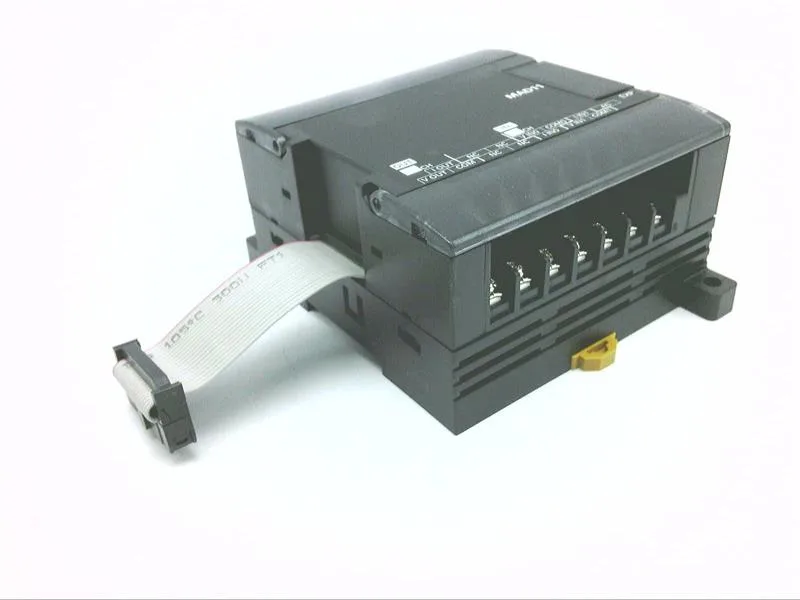

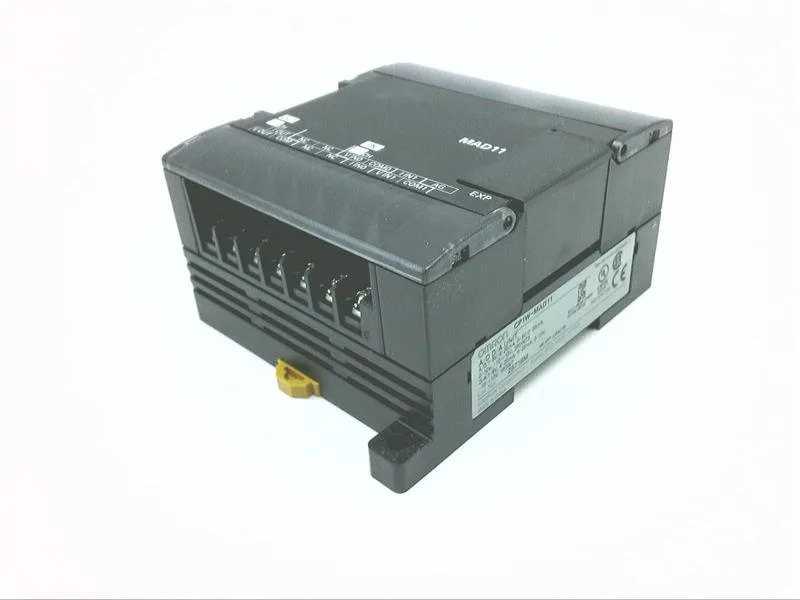

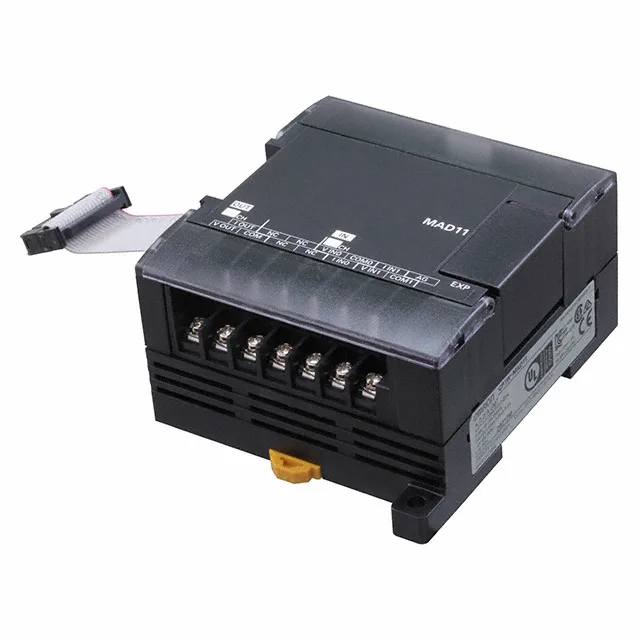

Omron CP1W-MAD11 Analog I/O Module, 2 In / 1 Out, Active

MPNCP1W-MAD11
Active

Omron CP1W series analog I/O module, CP1W-MAD11, 2 analog inputs and 1 analog output, DIN-rail mount, screw terminal, active production.

$230.00 – $678.27Ref. price · indicative, final on quote
Omron CP1W-MAD11 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1W-MAD11 — Identification
ParameterValue
SeriesCP1W
CP1W-MAD11 — I/O
ParameterValue
Inputs (count and type)2 - Analog
Outputs (count and type)1 - Analog
CP1W-MAD11 — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal
CP1W-MAD11 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1W-MAD11 — Other specifications
ParameterValue
TypeInput, Output (I/O) Module

Product details

Analog I/O for CP1L and CJ racks

The Omron CP1W-MAD11 is an analog I/O module that fits CP1-series and CJ-series PLC racks — two analog inputs plus one analog output in a single DIN-rail slice. Termination is via screw terminals, which means field wiring can be landed without a separate connector or tool — straightforward for a panel build or a swap on a running line.

What the I/O count means for your BOM

Two analog inputs and one analog output — the module handles a single mixed analog channel without needing a separate input and output module. Approvals include CE, cULus, Lloyd, and NK — the Lloyd and NK marks cover marine applications, so this module can sit in a shipboard control panel or offshore installation without a separate type-approval chase.

Active production — no lifecycle risk

Frequently asked questions

Is the CP1W-MAD11 compatible with the CP1L PLC?

Yes, the CP1W-MAD11 is listed for use with CP1-series PLCs, which includes the CP1L — it snaps onto the expansion bus of a CP1L CPU rack.

What is the input type of the CP1W-MAD11?

The CP1W-MAD11 has two analog inputs — the specific input type (voltage or current range) is detailed in the Omron CP1W-MAD11 datasheet.

How many outputs does the CP1W-MAD11 have?

One analog output — the module provides a single analog output channel alongside the two analog inputs.

MPN
CP1W-MAD11
