Omron CP1W series analog input module, 2 inputs, screw terminal, DIN rail mount, CE/cULus/Lloyd/NK approved.
| Parameter | Value |
|---|---|
| Series | CP1W |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 2 - Analog |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Screw Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Input Module |

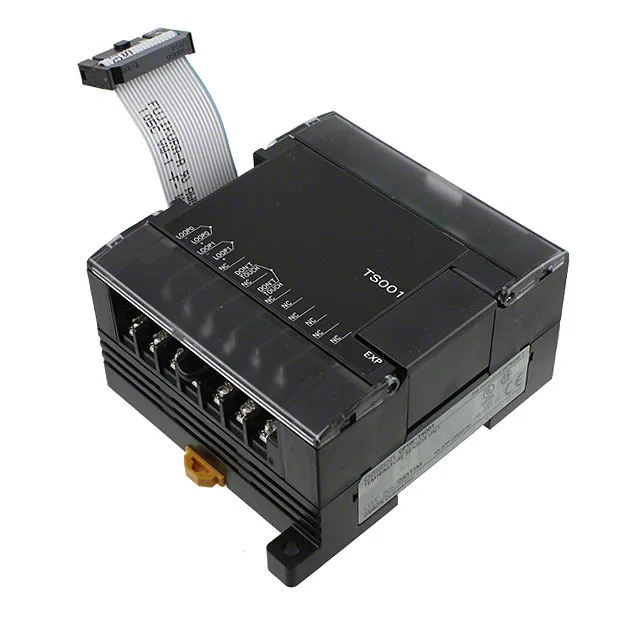

The Omron CP1W-TS001 is a 2-channel analog input module for the CP1 and CJ series PLC families. It mounts on DIN rail, terminates via screw terminals, and carries CE, cULus, Lloyd, and NK approvals — a set that covers most plant-floor and marine-class installations, including the gritty environment around a cement kiln.
DIN rail mount with screw terminals.
Physically, yes — same DIN rail mount, same terminal layout per channel. But the TS001 only has two analog inputs versus four on the AD041. If your panel uses all four inputs, you will lose two channels and must rewire to the existing connections or use a different module. For a two-input application, it fits without wiring changes.
