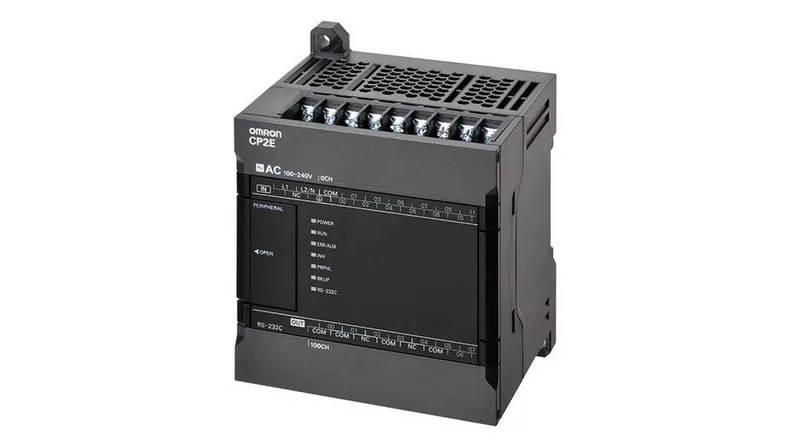

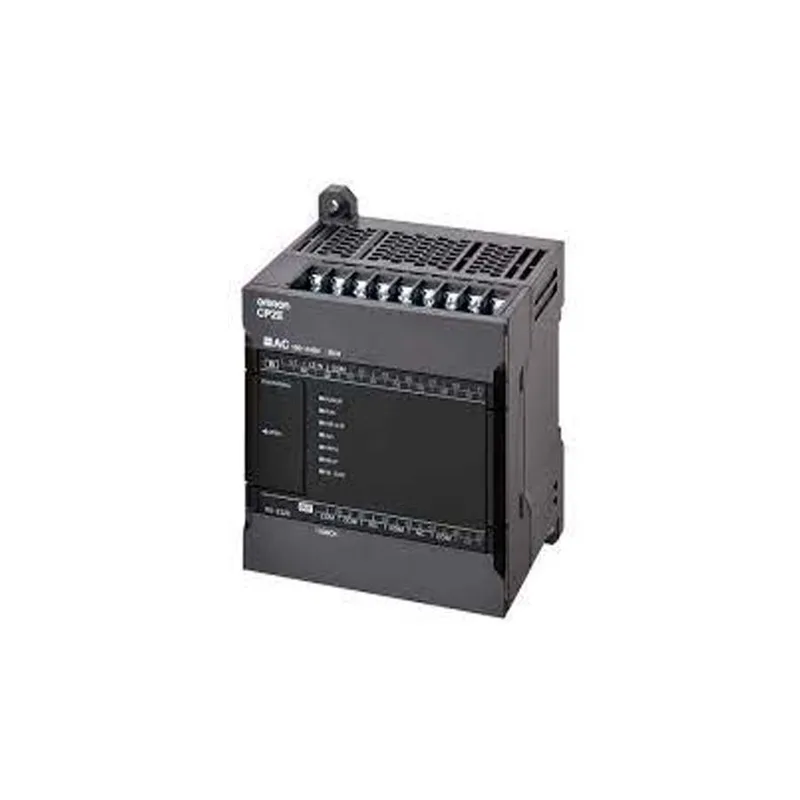

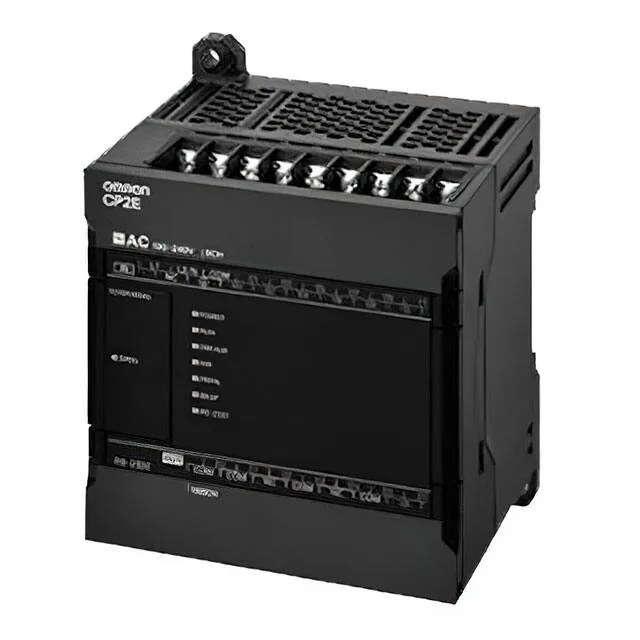

Omron CP2E-E14DR-A PLC CPU Unit
MPNCP2E-E14DR-A
Active
I/O MOD 8 DIG 6 RELAY 100-240V
$168.00 – $392.38Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CP2E |
| Mounting | DIN Rail Mount |
| Termination type | Screw Terminal |
| Digital input type | 24 VDC |
| Digital output type | Relay |
| Communication interface type | RS-232C;USB |
| Operating voltage max. | 240 V |
| Operating voltage min. | 100 V |
| Scan time | 0.23 us |
| Data memory | 4000 Words |
| Expandability | No |
| Battery backup | No |
All specifications
| Parameter | Value |
|---|---|
| Baud rate max. | 115 kbps |
| Digital inputs | 8 |
| Real-Time clock | No |
| Program capacity | 4000 Steps |
| Input (Output max.) | 14 I/O Points |
| Number of relay outputs | 6 |
| Programming language used | Ladder Diagram (LD) |
MPN
CP2E-E14DR-A
