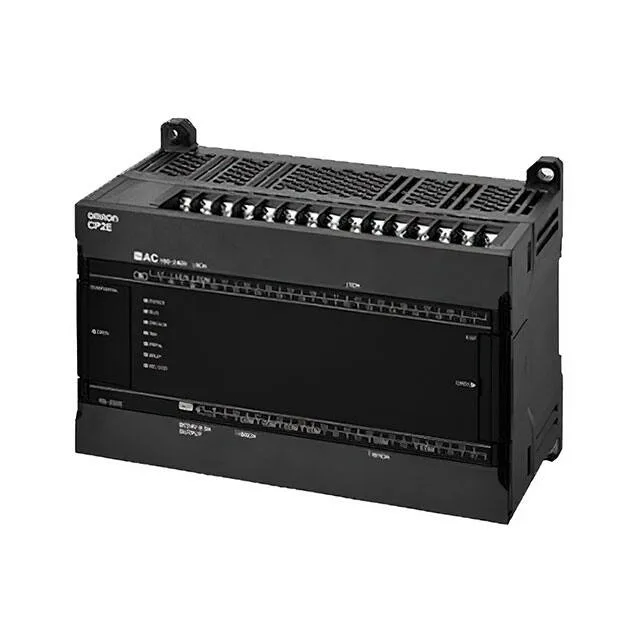

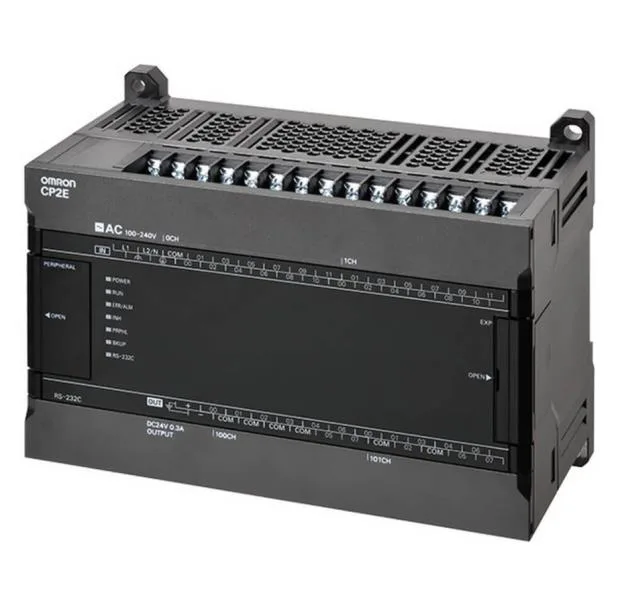

Omron CP2E-E40DR-A

Omron CP2E-E40DR-A I/O Module, 24 Digital Inputs, 16 Relay O

MPN CP2E-E40DR-A
Active

Omron CP2E Series, Type Input/Output (I/O) Module, CP2E-E40DR-A, 24 Digital Inputs, 16 Relay Outputs, 100-240VAC Supply.

$221.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CP2E-E40DR-A specifications
ParameterValue
SeriesCP2E
Product typeInput, Output (I/O) Module
Supply voltage100 to 240VAC
MountingDIN Rail
Temp operating max60 °C
Temp operating min-20 °C
PackageBox

Product details

This part in the panel

The Omron CP2E-E40DR-A is an active-production I/O slice offering 24 digital inputs and 16 relay outputs on a single DIN-rail module. Power supply is 100-240VAC, and the screw terminals accept up to the rated wire size — no special tooling needed for panel build-out.

How it stacks up against the N40DR-A

The CP2E-N40DR-A carries identical published specs: 24 digital inputs, 16 relay outputs, 100-240VAC supply, screw terminals, -20°C to 60°C ambient. Any difference would be in physical dimensions or network interfaces not captured here — the functional ratings line up perfectly. That's another SKU that would cross-fill the same BOM line if the footprint checks out.

Mounts on DIN rail; screw terminals for field wiring. Operating range -20°C to 60°C. Supply voltage 100-240VAC.

MPN
CP2E-E40DR-A
