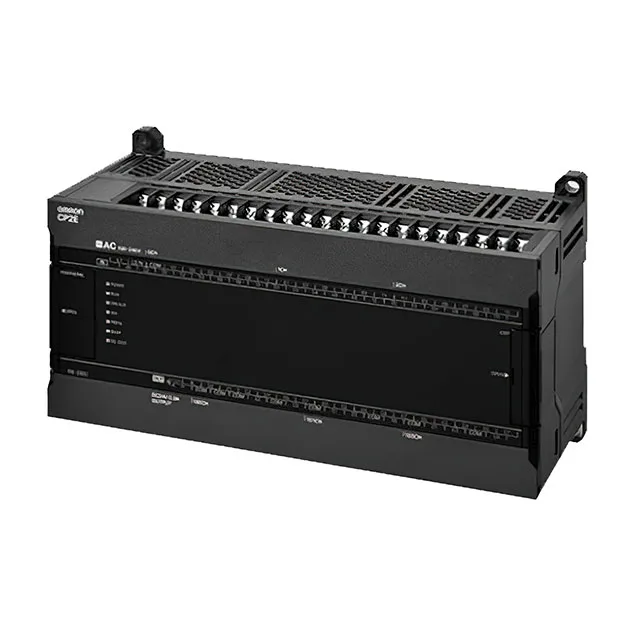

Omron CP2E-E60DR-A — PLCs (Programmable Logic Controllers)

CP2E-E60DR-A I/O Module, 36 In 24 Relay Out, Active

MPNCP2E-E60DR-A
Active

I/O module, 36 digital inputs, 24 relay outputs, 100-240 VAC supply, DIN rail mount, screw terminal.

$400.94 – $937.43Ref. price · indicative, final on quote
Omron CP2E-E60DR-A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP2E-E60DR-A — Identification
ParameterValue
SeriesCP2E
CP2E-E60DR-A — I/O
ParameterValue
Inputs (count and type)36 - Digital
Outputs (count and type)24 - Relay
CP2E-E60DR-A — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
CP2E-E60DR-A — Environmental
ParameterValue
Operating temperature range-20°C~60°C
CP2E-E60DR-A — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal
CP2E-E60DR-A — Other specifications
ParameterValue
TypeInput, Output (I/O) Module

Product details

The CP2E-E60DR-A is a compact I/O module packing 36 digital inputs and 24 relay outputs in a single DIN-rail unit. Powered from 100-240 VAC, it uses screw terminals for field wiring. Rated for -20°C to 60°C ambient, it fits standard control cabinets.

Where it fits vs siblings

For a direct second-source without rewiring, the CP2E-S60DR-A carries identical I/O counts, supply, and termination — same physical footprint and pinout per the series design. If relay outputs aren't required, the CP2E-N60DT-A swaps to 24 solid-state outputs, trading coil life for faster switching and no contact wear. For smaller builds, the CP2E-E40DR-A offers 24 inputs and 16 relay outputs in the same form factor.

Mounts on DIN rail with screw terminals. Powered by 100-240 VAC, it operates from -20°C to 60°C.

Frequently asked questions

What is the closest second-source for CP2E-E60DR-A?

The CP2E-S60DR-A is functionally identical — same 36 digital inputs, 24 relay outputs, supply voltage, and mounting. It drops into the same footprint without rewiring.

Will CP2E-E60DR-A drop into a panel built for CP2E-S60DR-A?

Yes, because the two share identical I/O counts, power supply, termination style, and DIN-rail mounting. No rewiring or panel modification needed.

What is the listed type of this module?

It is listed as an Input, Output (I/O) Module.

What series does CP2E-E60DR-A belong to?

It belongs to the CP2E series.
