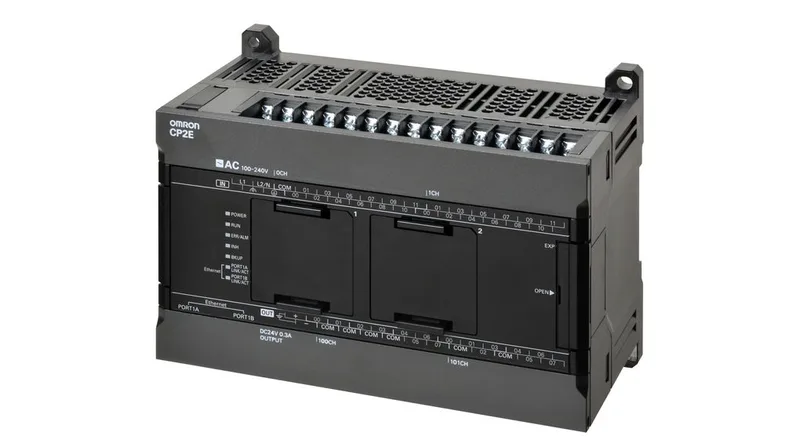

Omron CP2E-N40DR-D PLC CPU Unit
MPNCP2E-N40DR-D
Active
I/O MOD 24 DIGITAL 16 RELAY 24V
$455.00 – $850.52Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CP2E |
| Mounting | DIN Rail Mount |
| Termination type | Screw Terminal |
| Digital input type | 24 VDC |
| Digital output type | Relay |
| Communication interface type | Ethernet |
| Operating voltage max. | 24 V |
| Operating voltage min. | 20 V |
| Data memory | 16000 Words |
| Expandability | Yes |
| Battery backup | No |
| Baud rate max. | 100 Mbps |
All specifications
| Parameter | Value |
|---|---|
| Digital inputs | 24 |
| Real-Time clock | Yes |
| Program capacity | 10000 Steps |
| Input (Output max.) | 160 I/O Points |
| Number of relay outputs | 16 |
| Number of impulse outputs | 4 |
| Programming language used | Ladder Diagram (LD) |
| Number of high speed counters | 2 |
Frequently asked questions
What is the output type of the Omron CP2E-N40DR-D?
Confirms whether the module uses relay or transistor outputs before specifying it in a control panel BOM.
How many digital inputs and relay outputs does the CP2E-N40DR-D have?
Engineers must verify the 40-point I/O mix matches the machine's sensor and actuator count.
Is the CP2E-N40DR-D a CPU unit or an expansion I/O module?
Determines whether the device needs a host CP2E CPU or can stand alone in the rack configuration.
What is the supply voltage of the Omron CP2E-N40DR-D I/O module?
24 VDC supply compatibility must be confirmed against the cabinet power design.
What is the difference between CP2E-N40DR-D and CP2E-N40DT-D?
Selecting between relay (DR) and transistor (DT) outputs affects switching speed and inductive load handling.
Where can I buy the CP2E-N40DR-D with current stock and pricing?
Sourcing teams need authorized-distributor availability and lead times to release the purchase order.
MPN
CP2E-N40DR-D
