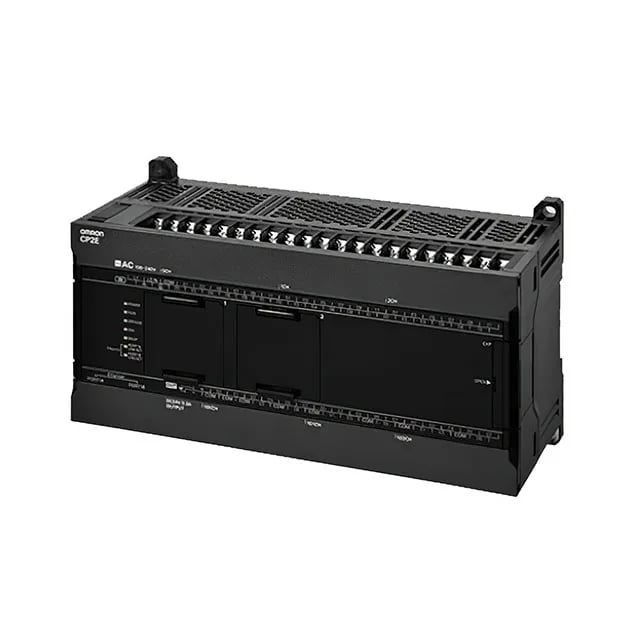

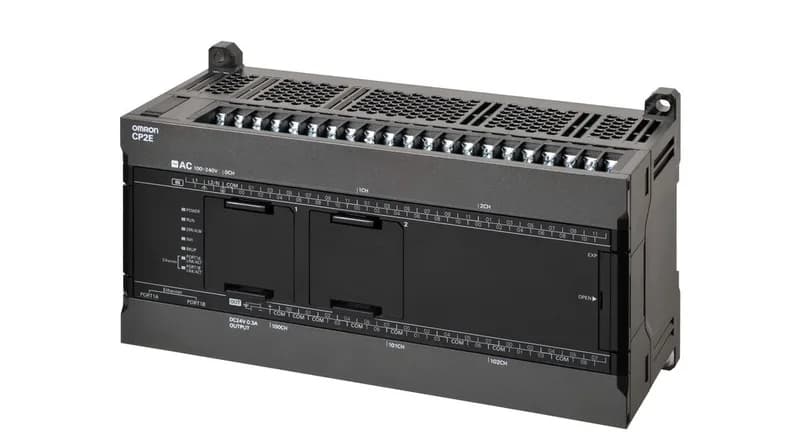

The Omron CP2E-N60DR-A is a current-production PLC from the CP2E family. It packs 36 digital inputs at 24 VDC and 24 relay outputs on screw terminals, all fed by a 100-240 VAC power supply. Scan time runs 200 ms, program capacity hits 10,000 steps, and data memory sits at 16,000 words. Real-time clock and battery backup are built in, so you don't lose time or register data when the line loses power out here in the grease.
The sibling CP2E-N60DR-D shares the same I/O count and form factor but runs on 24 VDC instead of 100-240 VAC. That means if your panel was wired for the DR-D, you'd need to swap or rework the power supply to drop in the DR-A. The relay outputs are identical, so the load side stays the same. If you're comparing against the transistor-output CP2E-N60DT1-D, note it lacks battery backup and speaks 24 VDC only — no option for AC power.
Mounts on DIN rail, termination via screw terminals. Expandable up to 180 I/O points via standard CP2E expansion units. Ethernet port on board for Modbus TCP or Omron protocol. For control integrators: 200 ms scan time is fine for discrete logic and slower process control — not a high-speed motion loop.
