Omron CP2E-N60DT-D — PLCs (Programmable Logic Controllers)

Omron CP2E-N60DT-D I/O Module, 36DI/24DO, 24VDC

MPNCP2E-N60DT-D
Active

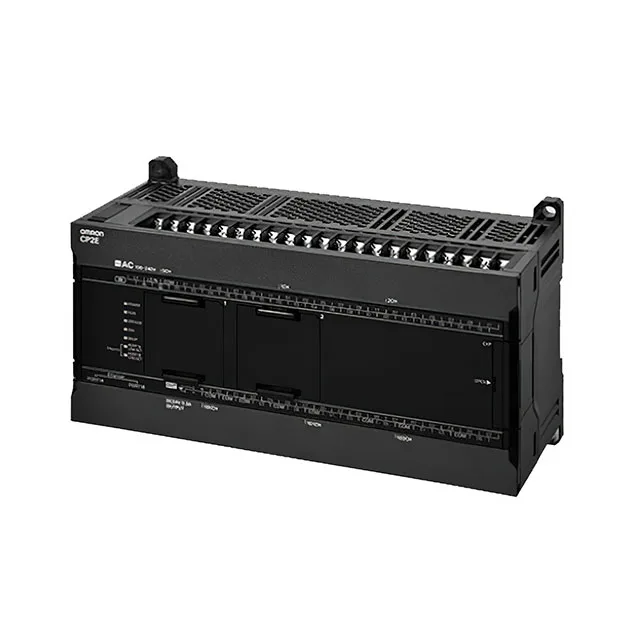

Omron CP2E-N60DT-D I/O Module, 36 Digital Inputs, 24 Solid State Outputs, 24 VDC.

$524.00 – $1,116.24Ref. price · indicative, final on quote
Omron CP2E-N60DT-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP2E-N60DT-D — Identification
ParameterValue
SeriesCP2E
CP2E-N60DT-D — I/O
ParameterValue
Inputs (count and type)36 - Digital
Outputs (count and type)24 - Solid State
CP2E-N60DT-D — Electrical
ParameterValue
Supply voltage24VDC
CP2E-N60DT-D — Environmental
ParameterValue
Operating temperature range-20°C~60°C
CP2E-N60DT-D — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal
CP2E-N60DT-D — Other specifications
ParameterValue
TypeInput, Output (I/O) Module

Product details

Product Overview

The Omron CP2E-N60DT-D is an I/O module for the CP2E series, packing 36 digital inputs and 24 solid state outputs into a single DIN-rail unit powered at 24 VDC with screw terminals. Active lifecycle status — no LTB or phase-out notice currently flagged, so this module remains in standard production for new builds and spares alike.

How It Compares to Sibling Variants

The CP2E-S60DT-D shares the same I/O count, 24 VDC supply, and screw termination but uses a different order code. The CP2E-N60DT-A swaps the DC supply for 100–240 VAC, which means you cannot drop this -D variant into a panel wired for AC without changing the power circuit. For a smaller footprint, the CP2E-N40DT1-D offers 24 inputs and 16 outputs in the same series and supply voltage.

Frequently asked questions

What is the difference between CP2E-N60DT-D and CP2E-N60DT-A?

The -D variant runs on 24 VDC, while the -A variant requires 100–240 VAC. They are not electrically interchangeable without a power supply change.

What type of module is the CP2E-N60DT-D?

It is an I/O module — specifically a combination of digital inputs and solid state outputs — in the Omron CP2E series.

What series does the CP2E-N60DT-D belong to?

It belongs to the Omron CP2E series of programmable logic controller components.

MPN
CP2E-N60DT-D
