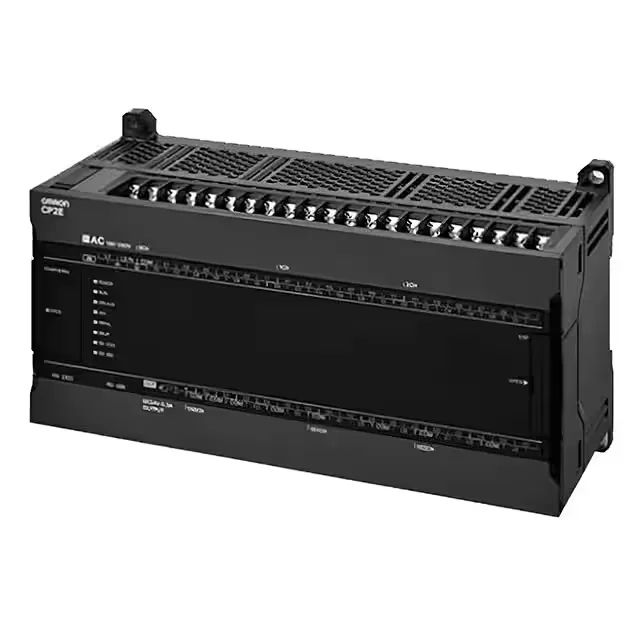

Omron CP2E-S60DR-A

CP2E-S60DR-A PLC CPU, 36 DI / 24 Relay, 100-240VAC

MPN CP2E-S60DR-A
Active

Omron CP2E series, CP2E-S60DR-A, Input Output (I/O) Module, 36 Digital Inputs, 24 Relay Outputs, 100~240VAC, DIN Rail Mount, Screw Terminal.

$408.00 – $1,002.45 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CP2E-S60DR-A specifications
ParameterValue
SeriesCP2E
Product typeInput, Output (I/O) Module
Supply voltage100 to 240VAC
MountingDIN Rail
Temp operating max60 °C
Temp operating min-20 °C
PackageBox

Product details

The CP2E-S60DR-A is a current-production Omron CPU from the CP2E series, carrying 36 digital inputs and 24 relay outputs. Supply is 100~240 VAC, so it pulls power directly from the control panel mains — no separate 24 VDC supply needed for the module itself. Screw terminals and DIN-rail mounting are standard.

Versus the CP2E-S60DT-D

The closest functional peer is the CP2E-S60DT-D, which is the same 36-input / 24-output frame but with solid-state outputs and 24 VDC supply. The relay outputs on the -A model handle up to the rated load with isolated commons — good for mixed voltage loads on the same module. The -DT-D runs on 24 VDC and switches faster but can't handle AC loads directly. Dropping the -DR-A into a panel wired for -DT-D means swapping the power supply and checking that the load side isn't expecting DC-only switching.

Integration notes

DIN-rail mount, screw-terminal wiring. The 36 inputs are typically 24 VDC sink/source, and the 24 relay outputs are form-A with a common per group. Panel builders should allow clearance for wiring the 60 points and the AC mains terminals. The module fits standard CP2E backplane-free rack — just snap and wire.

MPN
CP2E-S60DR-A
