Omron K8DT-LS1CD

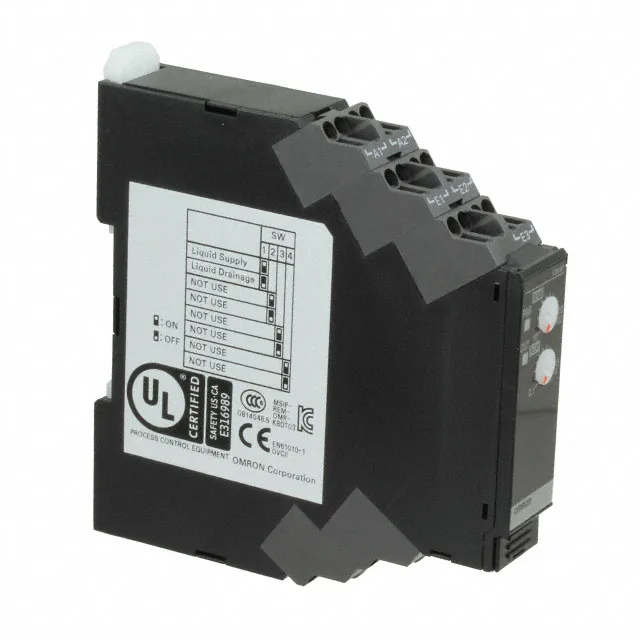

Omron K8DT-LS1CD Conductive Level Controller, 24VAC/DC

MPN K8DT-LS1CD
Active

Omron K8DT series, Constant Level controller, order code K8DT-LS1CD, 24VAC/DC supply, SPDT relay output, built-in delay timer, DIN-rail mount.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K8DT-LS1CD specifications
ParameterValue
SeriesK8DT
Output signalRelay
Product typeConstant Level
Supply voltage24 VAC/DC
Contact formSPDT (1 Form C)
MountingDIN Rail
Temp operating max60 °C
Temp operating min-20 °C
Weight0.221 lb (100.24 g)
PackageBox

Product details

What this controller does on the line

The Omron K8DT-LS1CD is a Constant Level controller — it monitors conductive liquid level through two or three probe electrodes and switches a relay when the level crosses the set point. The built-in delay timer prevents relay chatter from wave action or splashing, so the output holds steady until the level settles. The sensitivity adjustment spans 10 ~ 100kOhm, which lets it work with different liquid conductivities — from clean water to process fluids with higher resistivity.

The spring terminal termination accepts solid or ferruled stranded wire without needing a screwdriver torque check; push the wire in and the cage grips it. Supply voltage is 24VAC/DC — common for control transformers or DC power supplies in industrial panels. The SPDT (1 Form C) relay output is rated 5A @ 250VAC — enough to drive a small contactor coil, alarm horn, or pilot light directly. The maximum distance from the controller to the sensor probes is 100m, which covers most tank-to-panel runs without a signal booster.

Production status is Active — this is a current catalog item from Omron.

MPN
K8DT-LS1CD
