Omron K8AC-H22CC-FLK

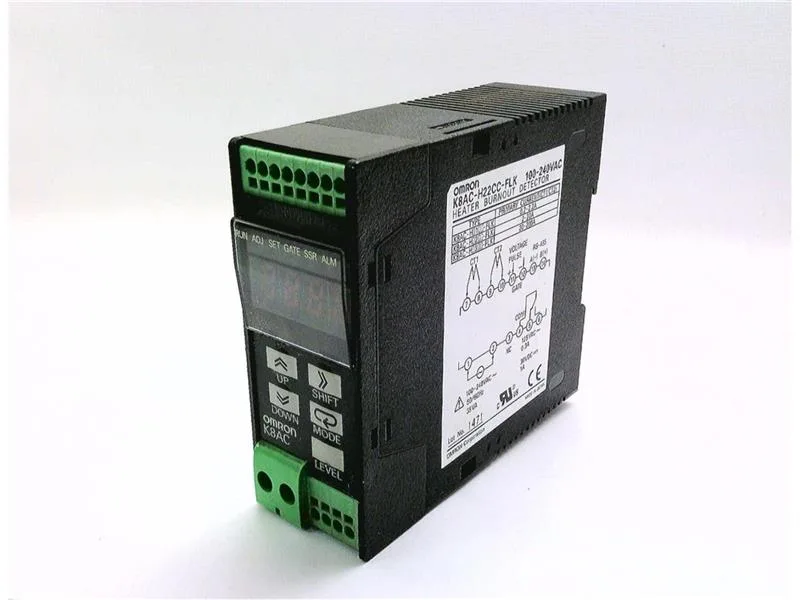

Omron K8AC-H22CC-FLK Heater Element Detector, 2-22A

MPN K8AC-H22CC-FLK
Active

Omron K8AC-H series, Heater Element Detector, order code K8AC-H22CC-FLK, 2 ~ 22A input range, 85 ~ 264VAC supply, DIN rail mount, RS-485 CompoWay/F, relay output, LED display.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K8AC-H22CC-FLK specifications
ParameterValue
SeriesK8AC-H
Output signalRelay
Display typeLED - Red Characters
Product typeHeater Element Detector
Supply voltage85 to 264VAC
ProtocolRS-485 (CompoWay/F)
MountingDIN Rail
Temp operating max55 °C
Temp operating min-10 °C
Weight0.441 lb (200.03 g)
PackageBulk
Control methodOn/Off

Product details

DIN-Rail Heater Current Monitor

The K8AC-H22CC-FLK is a dedicated heater element detector from Omron's K8AC-H series, designed to monitor current draw of resistive heater loads and flag a fault when a heater burns out or the circuit opens. Input range covers 2 to 22 A, so it catches the full operating band of most single-phase or three-phase heater strings in that amperage window. The 85 to 264 VAC supply means it runs off any standard line voltage without a separate control transformer — handy when you're pulling power straight from the heater contactor's feed.

RS-485 and Relay Output

RS-485 communication using Omron's CompoWay/F protocol lets a PLC or SCADA poll the detector for real-time current values and fault status — useful for logging heater life or triggering a pre-alarm before the line goes cold. The relay output gives a hard contact for direct alarm annunciation or a safety interlock. Four red LED characters display the measured current value locally, so a technician walking the panel can see at a glance which heater is drawing current and which one dropped out. On/Off control method means it's a threshold-based detector, not a PID loop — set the trip point and it flags when the current falls outside the window.

Active Production, Sourced to Order

MPN
K8AC-H22CC-FLK
