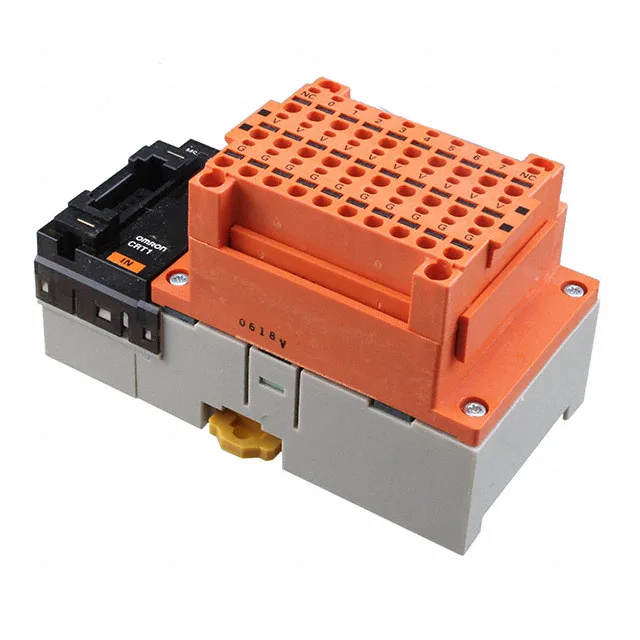

Omron CRT1 series, Input Module, CRT1-ID08TA, 8 Digital, DIN Rail, CE, cULus.
| Parameter | Value |
|---|---|
| Series | CRT1 |
| For use with / related products | CJ, CS, NJ Series |
| Parameter | Value |
|---|---|
| Digital inputs (count and type) | 8 - Digital |
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C~55°C |
| Parameter | Value |
|---|---|
| Termination style | Rectangular Connector, Screw Terminal |
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Agency approvals | CE, cULus |
| Parameter | Value |
|---|---|
| Type | Input Module |
| Weight | 0.419 lb (190.06 g) |
The Omron CRT1-ID08TA is an 8-point digital input module from the CRT1 remote I/O series. Operating temperature range is -10°C to 55°C with CE and cULus approvals, so it slots into panels needing those marks.
This module interfaces with CJ/CS/NJ controllers over the CRT1 remote I/O bus. Wiring uses rectangular connectors with screw terminals for sensor inputs. No built-in diagnostics or fieldbus interface — this is a basic 8-input slice for digital sensors or limit switches.
It is a Type Input Module belonging to the CRT1 series.
No. The CRT1-ID08TA is designed for use with Omron CJ, CS, and NJ series PLCs. CP2E PLCs use onboard I/O or expansion modules, not the CRT1 remote I/O bus.
It is CE and cULus approved.
