Input Module for CS Series

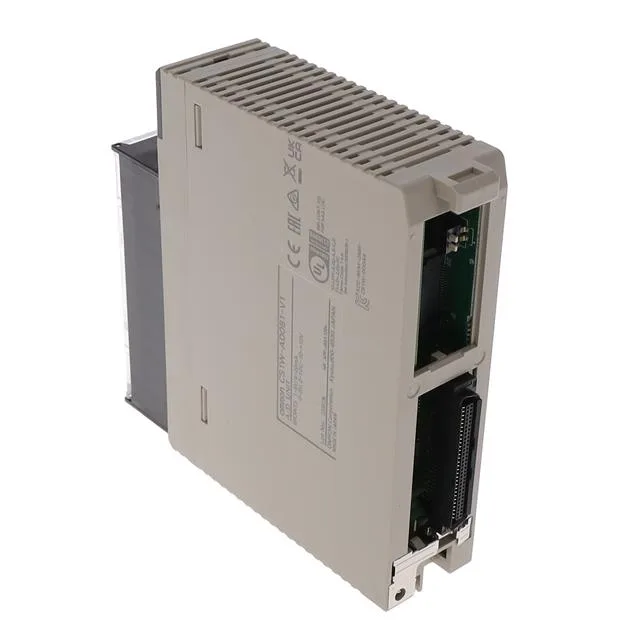

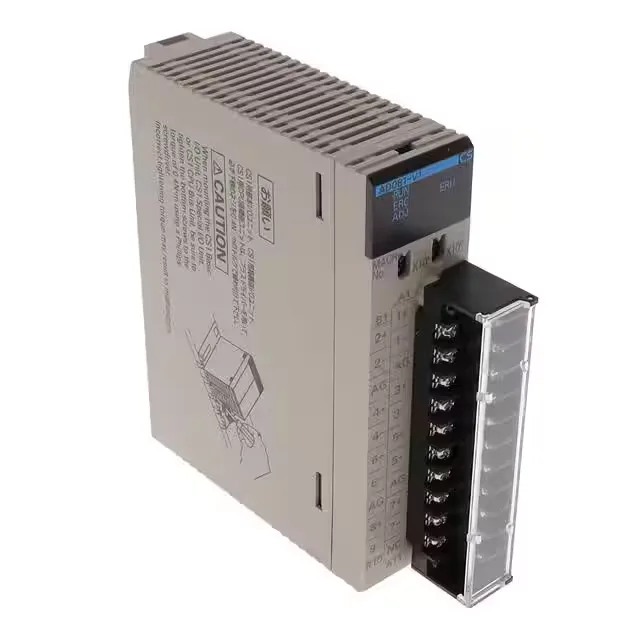

The CS1W-AD081-V1 is an 8-channel analog input module that mounts on the CS backplane and terminates with screw terminals. I/O allocation is standard for the series. Rated for a 0–55 °C operating envelope, the module carries approvals common to marine and industrial control panels: CE, cULus, Lloyd, and NK.
4-Channel vs. 8-Channel: AD041-V1 Compared
The sibling CS1W-AD041-V1 shares the same backplane footprint, screw-terminal layout, and environmental limits (0–55 °C). The only difference relevant to the procurement decision is input count: 4 analog inputs on the AD041-V1 versus 8 on this unit. If the existing panel is wired for four and a spare slot is open, the AD081-V1 fits without hardware modifications — the CPU I/O table must be updated to reflect the higher channel count.
CE, cULus, Lloyd, and NK approvals cover general industrial and marine applications.
