Omron CS1W-NC133 — PLCs (Programmable Logic Controllers)

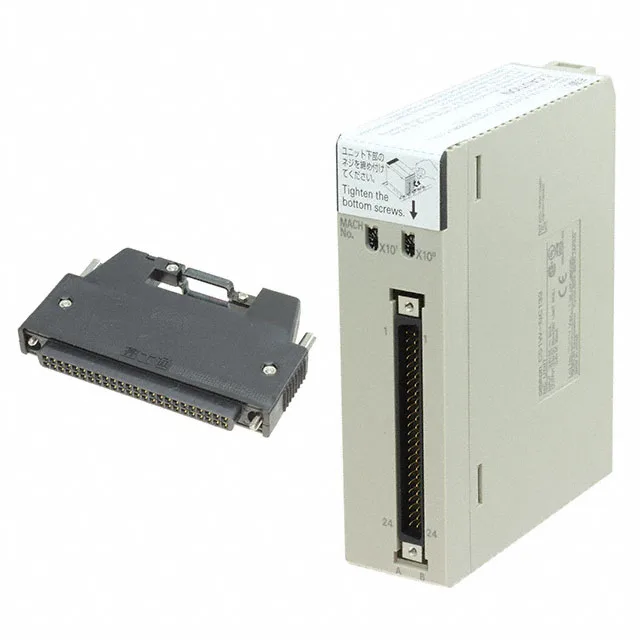

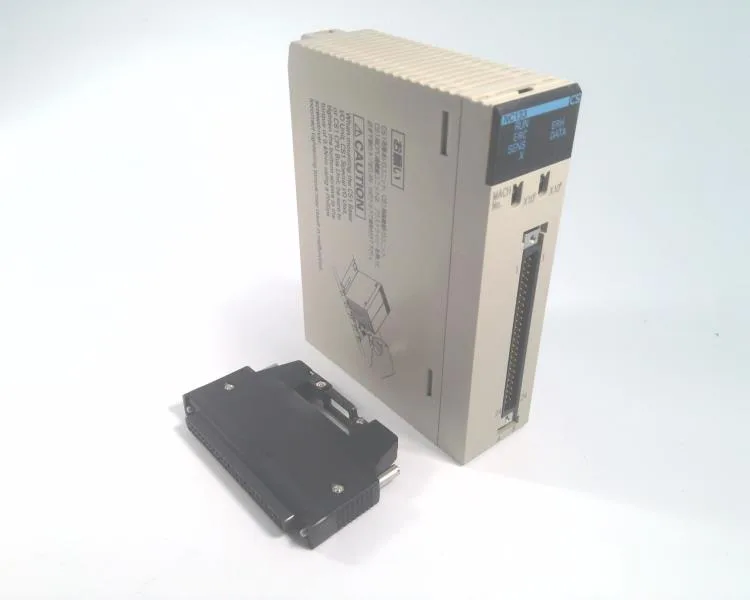

Omron CS1W-NC133 Single-Axis Motion Control Module

MPNCS1W-NC133
End of Life

Omron CS1W-NC133, CS1 Series, Single-Axis Motion Control Module, D-Sub Termination, Backplane Mount, Active Production.

$501.80 – $1,217.88Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CS1W-NC133 — Identification
ParameterValue
SeriesCS1W
CS1W-NC133 — Mechanical
ParameterValue
Mounting typeBackplane
Weight0.551 lb (249.93 g)
Termination styleD-Sub
CS1W-NC133 — Approvals
ParameterValue
Approvals / certificationsCE, CSA, Lloyd, NK, UL
CS1W-NC133 — Other specifications
ParameterValue
TypeMotion Control Module
FeaturesSingle Axis Control

Product details

The Omron CS1W-NC133 is a single-axis motion control module from the CS1W series, designed for the CS Series PLC backplane. Rated for single-axis positioning, it communicates via a D-Sub connector and mounts directly on the rack. Approvals include CE, CSA, Lloyd, NK, and UL, so it ships into most industrial and marine environments without additional certification.

Backplane mounting for CS Series racks; the D-Sub connector handles encoder and limit-switch wiring. No additional power supply beyond what the backplane provides. Configuration and axis parameters are set via the CS1 PLC programming environment — no physical jumpers or DIP switches on the module itself.

Frequently asked questions

Will the CS1W-NC133 drop into a panel wired for a CS1W-NC213?

Mechanically yes — same backplane mount, same weight, same D-Sub termination. But the NC133 controls a single axis while the NC213 controls two, so the PLC programming and axis configuration must match the module you install. No rewiring needed for the physical swap.

What compliance documentation does Omron provide for this module?

The CS1W-NC133 carries CE, CSA, Lloyd, NK, and UL approvals. These cover industrial and marine applications across most regions. RoHS and REACH documentation is typically available from Omron but not listed in this specification.

MPN
CS1W-NC133
