What it is and what it does

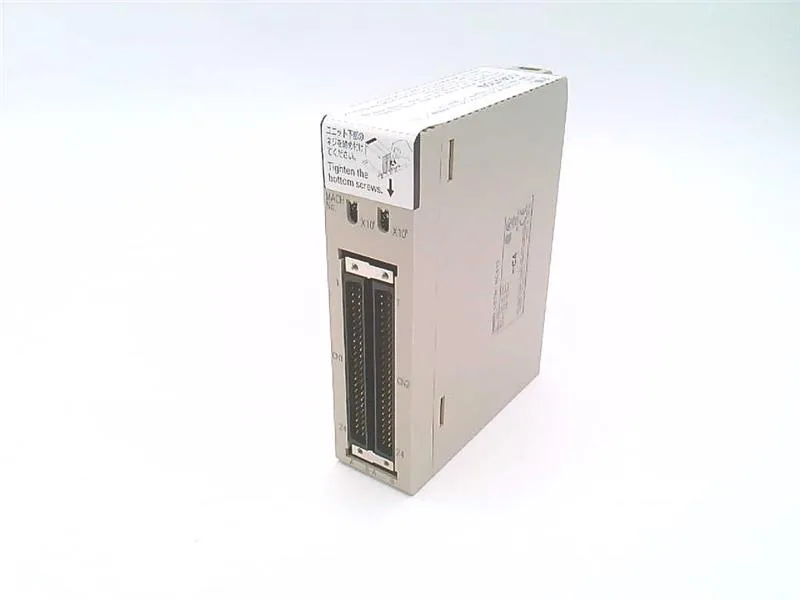

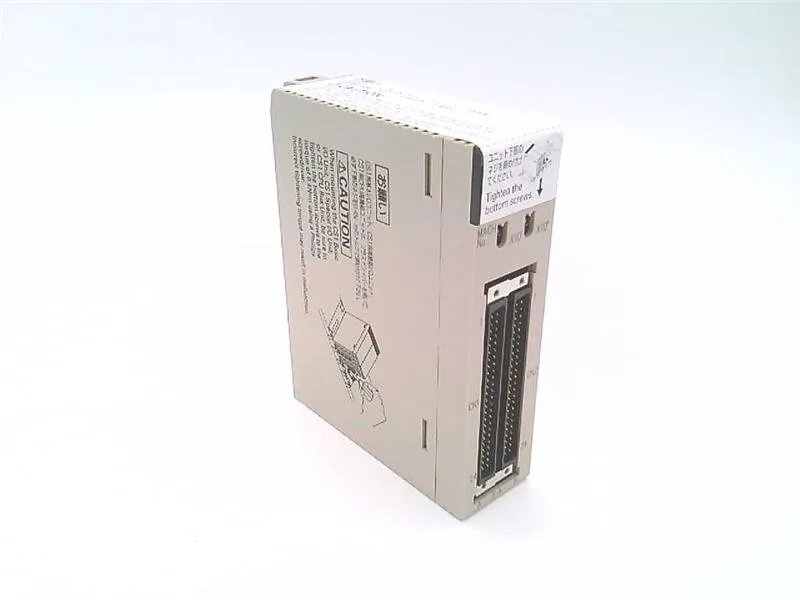

The Omron CS1W-NC413 is a 4-axis motion control module designed for the CS Series PLC rack. It mounts on the backplane and communicates via the CS-series bus, with D-Sub connectors for encoder and command wiring. Four-axis control means one module handles coordinated motion for up to four servo or stepper axes—suitable for multi-axis positioning, indexing, or interpolation tasks common in packaging, assembly, and machine tool applications.
Panel integration and compliance
Backplane mount keeps the module within the CS Series rack, reducing point-to-point wiring. D-Sub terminations provide a shielded, positive-lock connection for motion signals, which helps maintain signal integrity in noisy environments. Approved to CE, CSA, Lloyd, NK, and UL standards, so the module meets common panel certification requirements for Europe, North America, and marine applications.
