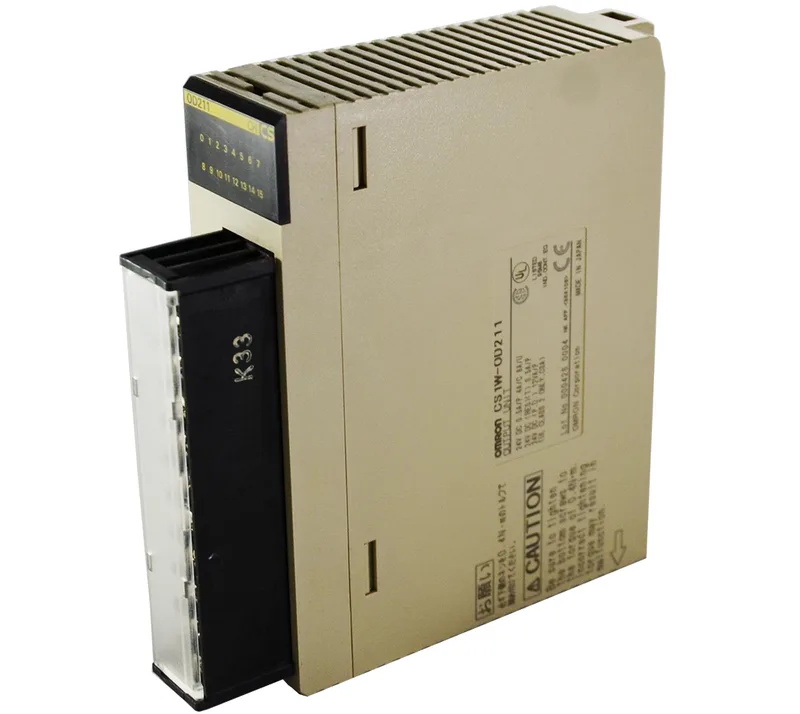

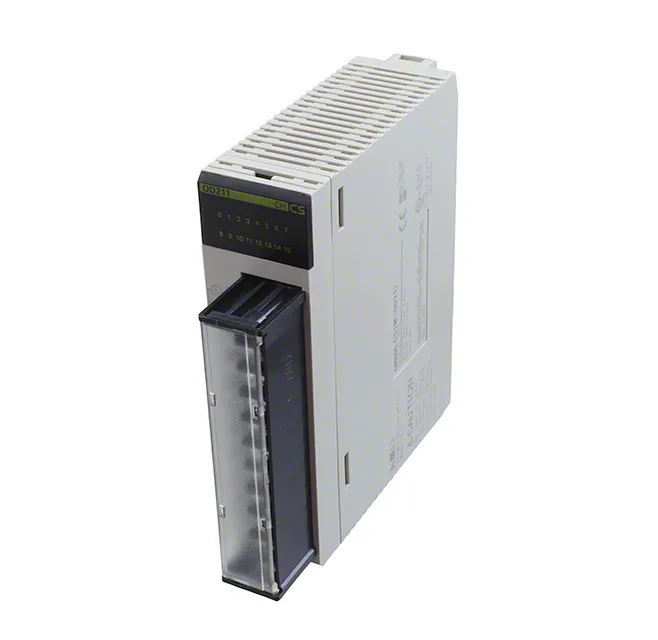

Omron CS1W-OD211, Type Output Module, Series CS1W, 16-Point Solid State, Backplane Mount, Screw Terminal, Approvals CE, cULus, Lloyd, NK.
| Parameter | Value |
|---|---|
| Series | CS1W |
| Parameter | Value |
|---|---|
| Outputs (count and type) | 16 - Solid State |
| Parameter | Value |
|---|---|
| Mounting type | Backplane |
| Weight | 0.595 lb (269.89 g) |
| Termination style | Screw Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Output Module |
The Omron CS1W-OD211 output module delivers 16 solid-state outputs on the CS Series backplane, terminated via screw terminals. It carries approvals CE, cULus, Lloyd, and NK, confirming global compliance for control panels.
Backplane mount uses a CS-series slot. Screw-terminated solid-state outputs eliminate mechanical wear; consult data sheet for load derating.
No. The CP1W-32ET is a DIN-rail module for the CJ/CP1 series, while the CS1W-OD211 is a backplane-mounted module for the CS series. The bus interface and mounting are incompatible without a platform change.
CE, cULus, Lloyd, and NK — covering European, US/Canadian, and marine applications.
16 solid-state outputs, screw-terminated, for the CS series backplane.
