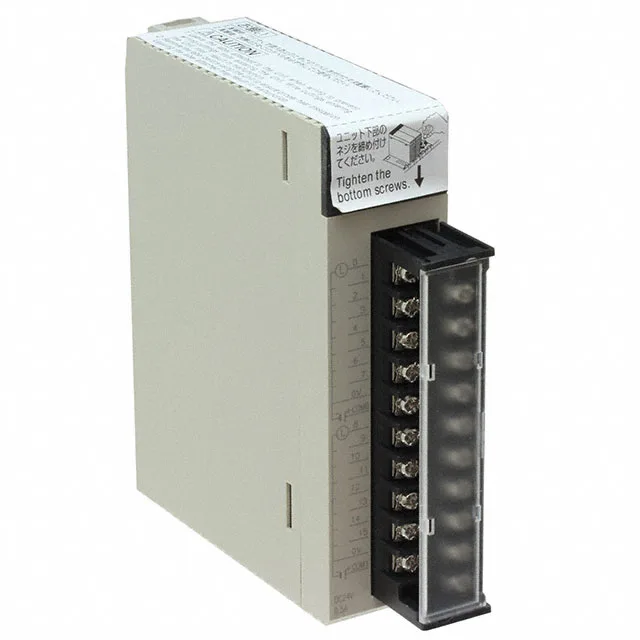

Omron CS1W-OD212 — PLCs (Programmable Logic Controllers)

Omron CS1W-OD212 Output Module, 16 Solid State

MPNCS1W-OD212
End of Life

Omron CS1W series output module, 16 solid state outputs, screw terminal, backplane mount, CE/cULus/Lloyd/NK/UL approved.

$696.20 – $747.77Ref. price · indicative, final on quote
Omron CS1W-OD212 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

CS1W-OD212 — Identification
ParameterValue
SeriesCS1W
CS1W-OD212 — I/O
ParameterValue
Outputs (count and type)16 - Solid State
CS1W-OD212 — Mechanical
ParameterValue
Mounting typeBackplane
Weight0.595 lb (269.89 g)
Termination styleScrew Terminal
CS1W-OD212 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK, UL
CS1W-OD212 — Other specifications
ParameterValue
TypeOutput Module

Product details

CS1W-OD212 at a glance

The Omron CS1W-OD212 is a 16-point solid-state output module built for the CS1 PLC series. It mounts directly on the CPU backplane or an expansion rack, with all 16 outputs wired through a single screw-terminal connector. These are solid-state (transistor) outputs, so they handle high-frequency switching and inductive loads better than relay equivalents. The module carries CE, cULus, Lloyd, NK, and UL approvals, covering most industrial and marine panel requirements.

Integration checklist for a CS1 backplane

Mounts on the CS1 backplane; no DIN rail required. The screw-terminal block handles field wiring.

Frequently asked questions

What approvals does the CS1W-OD212 carry?

It is approved by CE, cULus, Lloyd, NK, and UL, covering industrial control panels and marine applications.

Can the CS1W-OD212 replace a CS1W-OA201 without rewiring?

No. The OD212 has 16 solid-state outputs versus the OA201's 8. Physically they share the same backplane slot and screw-term type, but the additional eight outputs require extra wires and a different field-wiring plan.

What type of outputs does the CS1W-OD212 have?

Solid-state (transistor) outputs. 16 sinking outputs with a common return.
