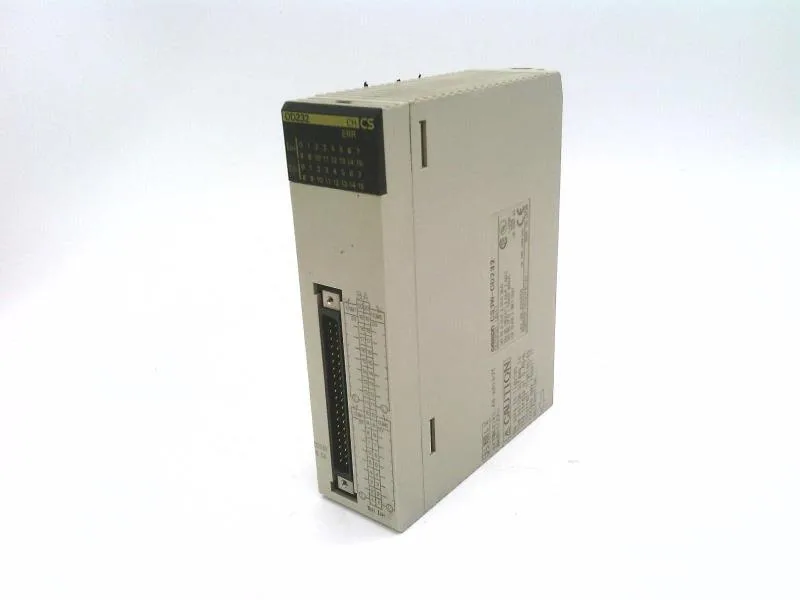

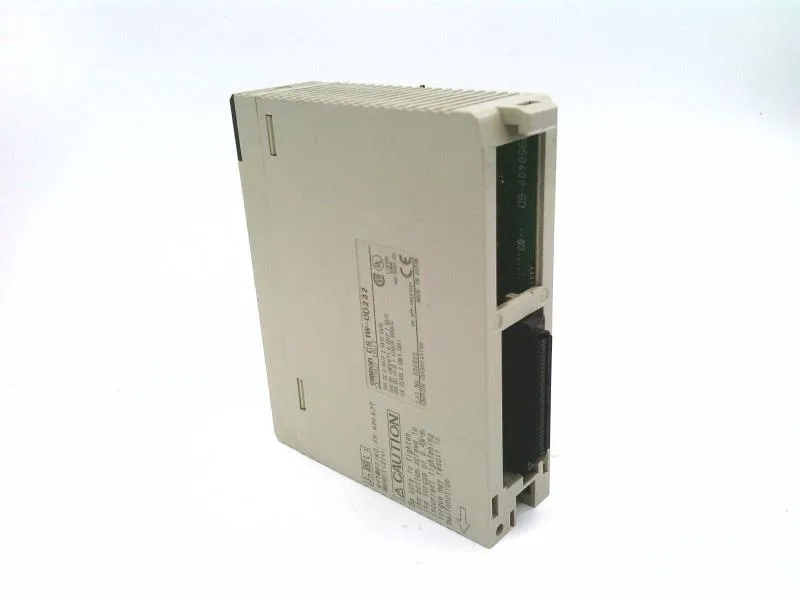

Omron CS1W-OD232 Output Module, 32 Solid State, Backplane Mount, CE/CSA/Lloyd/NK/UL, Active.
| Parameter | Value |
|---|---|
| Series | CS1W |
| Parameter | Value |
|---|---|
| Outputs (count and type) | 32 - Solid State |
| Parameter | Value |
|---|---|
| Mounting type | Backplane |
| Weight | 0.463 lb (210.01 g) |
| Termination style | Rectangular Connector |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, CSA, Lloyd, NK, UL |
| Parameter | Value |
|---|---|
| Type | Output Module |
The CS1W-OD232: 32-output solid-state module for the CS1 series backplane. Backplane-mounted via a rectangular connector, it drives 32 solid-state outputs per the module's spec table. Approvals include CE, CSA, Lloyd, NK, and UL — coverage suitable for plants under those certification bodies.
Mounts on CS1 series backplane via the rectangular connector. Provides 32 solid-state outputs.
Both are 32-output solid-state modules with the same backplane footprint and rectangular connector. The CS1W-OD232 carries CE, CSA, Lloyd, NK, and UL approvals, while the CS1W-OD231 has CE, cULus, Lloyd, and NK. The OD232 adds Lloyd and NK, and uses UL instead of cULus.
Physically yes — same series backplane and same rectangular connector. Electrically the output count and type match. The only consideration is approval compatibility: verify plant-level certification requirements (cULus vs UL and the presence of Lloyd/NK).
The module carries CE, CSA, Lloyd (Lloyd's Register), NK (Nippon Kaiji Kyokai), and UL approvals. Documentation for these certifications is provided by the manufacturer.
