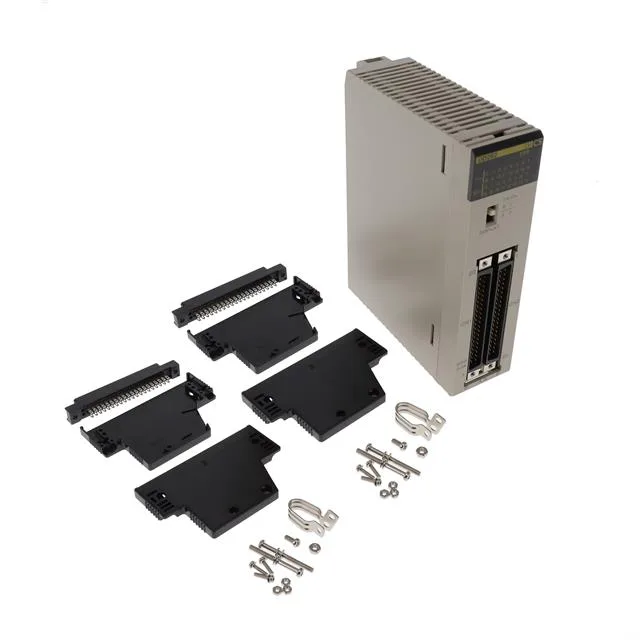

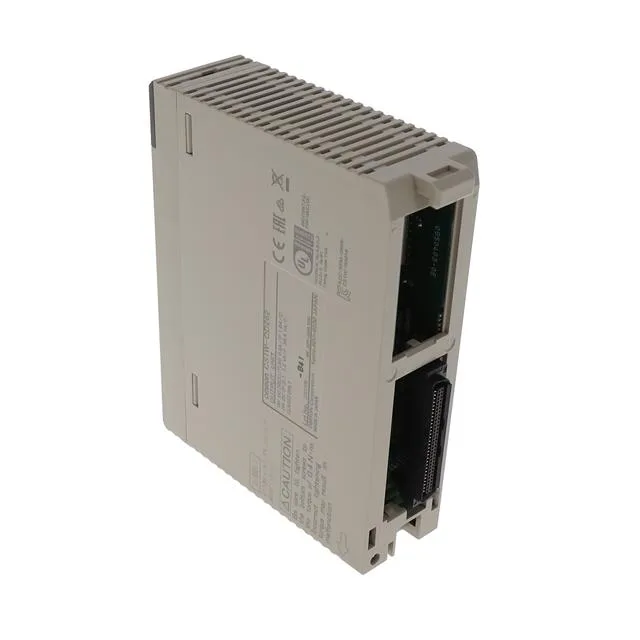

Omron CS1 Series CS1W-OD262 Output Module, 64 Solid State Outputs, Backplane Mount.
| Parameter | Value |
|---|---|
| Series | CS1W |
| Parameter | Value |
|---|---|
| Outputs (count and type) | 64 - Solid State |
| Parameter | Value |
|---|---|
| Mounting type | Backplane |
| Weight | 0.595 lb (269.89 g) |
| Termination style | Rectangular Connector |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Output Module |
Omron CS1W-OD262 is a 64-channel solid-state output module for the CS1 series, mounted on the backplane via a rectangular connector.
Same backplane footprint as the CS1W-OD231 (32 outputs) and CS1W-OD292 (96 outputs), making the channel count the primary selection variable between them.
Module occupies one backplane slot. The rectangular connector mates with the CS-series I/O bus. Approvals include CE, cULus, Lloyd, and NK.
CE, cULus, Lloyd, NK.
64 solid-state outputs.
The CS1W-OD231 offers 32 outputs in the same backplane form factor, but verify pinout assignment before wiring.
Backplane mount.
CS1W series output module.
