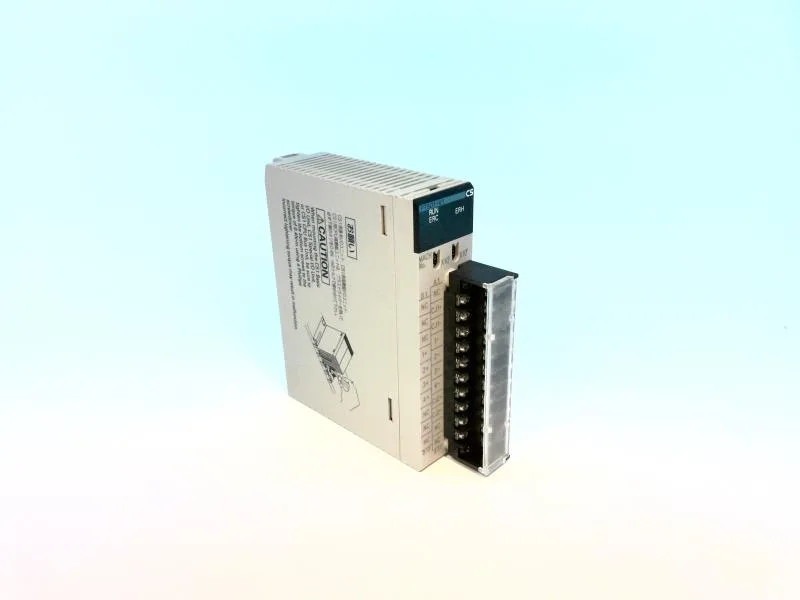

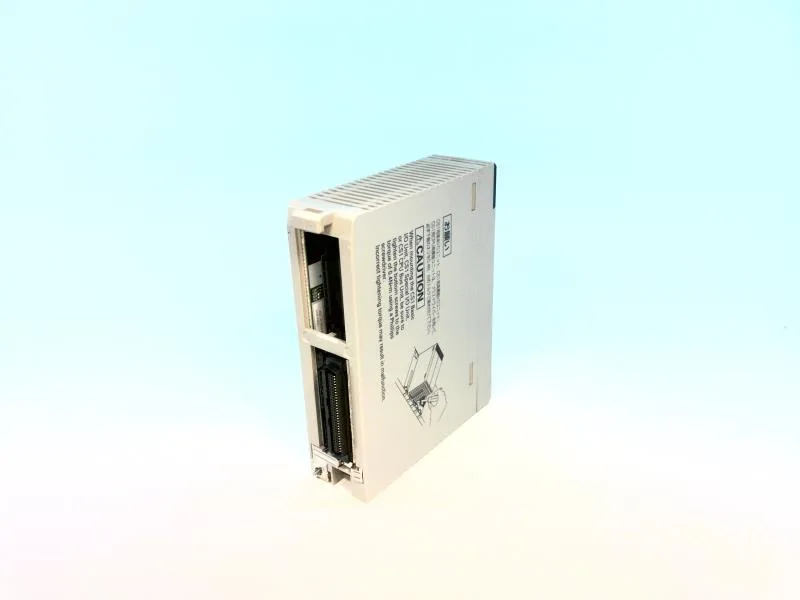

Omron CS1W-PTS01-V1 — PLCs (Programmable Logic Controllers)

Omron CS1W-PTS01-V1 Input Module, 4 Analog, Type B/E/J/K/N/R

MPNCS1W-PTS01-V1
End of Life

Omron CS1W-PTS01-V1, Input Module, 4 Analog, Thermocouple Types B E J K N R S T, Backplane Mount.

$665.48Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CS1W-PTS01-V1 — Identification
ParameterValue
SeriesCS1W
CS1W-PTS01-V1 — I/O
ParameterValue
Inputs (count and type)4 - Analog
CS1W-PTS01-V1 — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CS1W-PTS01-V1 — Mechanical
ParameterValue
Mounting typeBackplane
Weight0.984 lb (450 g)
Termination styleScrew Terminal
CS1W-PTS01-V1 — Approvals
ParameterValue
Approvals / certificationsCE, cULus
CS1W-PTS01-V1 — Other specifications
ParameterValue
TypeInput Module
FeaturesType B, E, J, K, N, R, S, T

Product details

The CS1W-PTS01-V1: Four analog inputs: each channel reads a thermocouple directly. The listed types (B, E, J, K, N, R, S, T) cover the vast majority of industrial process measurements – kiln exhaust, preheater temps, clinker cooler. If you need Type U or marine certification (NK), look at the CS1W-PTS11 sibling. Backplane mount plugs into the CS Series rack; screw terminals handle field wiring. Operating temperature is 0°C to 55°C.

This module lives in an Omron CS Series rack, typically in process control applications: cement plants, refineries, chemical lines, or any facility that monitors multiple thermocouple points. The four channels handle things like kiln zone temps, furnace zones, or extruder barrel profiles. CE and cULus approvals cover most industrial installations globally.

Frequently asked questions

What is the closest functional alternative?

CS1W-PTS11 is the nearest sibling. It adds Type U thermocouple capability and NK (marine) approval, but is otherwise identical in form, fit, and number of inputs.

What thermocouple types does it support?

It supports types B, E, J, K, N, R, S, and T.

Can it replace a CS1W-PTS11 without rewiring?

Yes – same backplane slot, same screw terminal arrangement, same 4 analog inputs. The only difference is the thermocouple types supported and approval listing.

What compliance approvals does it carry?

It is approved CE and cULus.
