Omron CS1W-RPT01 — PLCs (Programmable Logic Controllers)

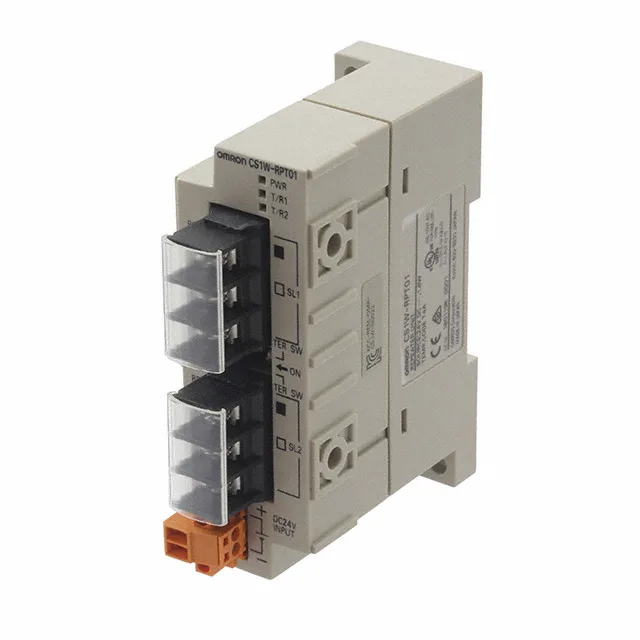

Omron CS1W-RPT01 Repeater Module, 24VDC

MPNCS1W-RPT01
End of Life

Omron CS1W-RPT01 Repeater Module, CS Series, 24VDC, Screw Terminal, DIN Rail Mount.

$829.57 – $910.33Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

CS1W-RPT01 — Identification
ParameterValue
SeriesCS1W
CS1W-RPT01 — Electrical
ParameterValue
Supply voltage24VDC
CS1W-RPT01 — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.278 lb (126.1 g)
Termination styleScrew Terminal
CS1W-RPT01 — Other specifications
ParameterValue
TypeRepeater Module

Product details

Signal Repeater for CS Series

The Omron CS1W-RPT01 is a repeater module for the CS Series PLC racks — regenerates serial signals over copper wire. 24VDC supply, screw terminals in and out. Mounts on DIN rail or chassis. This is the copper-wire version; the CS1W-RPT03 gives you fiber optic termination. Mechanically identical frame, same power draw. If your panel runs CS Series and you need a simple signal boost without fiber, this is the drop-in.

Panel Fit

DIN rail or chassis mount. 24VDC supply with screw terminal wiring; no backplane slot required.

Frequently asked questions

What is the closest functional alternative to CS1W-RPT01?

The CS1W-RPT03 is the closest alternative. It is also a repeater module in the same series, same mechanical footprint and power supply, but it includes a fiber optic termination in addition to screw terminals.

Will CS1W-RPT01 fit in a panel that requires CS1W-RPT03?

The modules share the same mounting dimensions and supply voltage. However, the termination differs: RPT01 uses screw terminals only; RPT03 has both screw and fiber optic. If the panel wiring expects fiber, you'll need to change cables or use the RPT03.

What is the supply voltage for CS1W-RPT01?

24VDC, standard for industrial control panels.

MPN
CS1W-RPT01
