Communication Slot Card for CS1 PLC

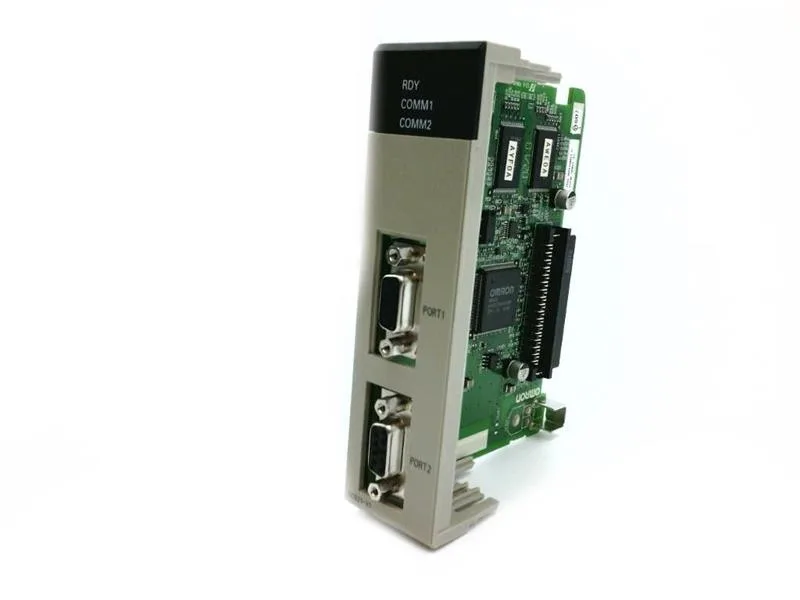

The CS1W-SCB21-V1: Two RS-232C ports plug into any CS1 series CPU backplane slot for programming or connecting HMIs, barcode scanners, or third-party serial devices. Works with CX-Programmer for online edits and ladder monitoring.
Mounting & Wiring Notes
Slides into any vacant slot in a CS1 rack — no tools, no drivers. Serial pinout matches the standard Omron DTE configuration; set port parameters in the CPU's I/O table (baud, parity, stop bits). Bond the shield at the PLC end only to keep ground loops off the backplane.
