Omron D4A0700N
MPND4A0700N

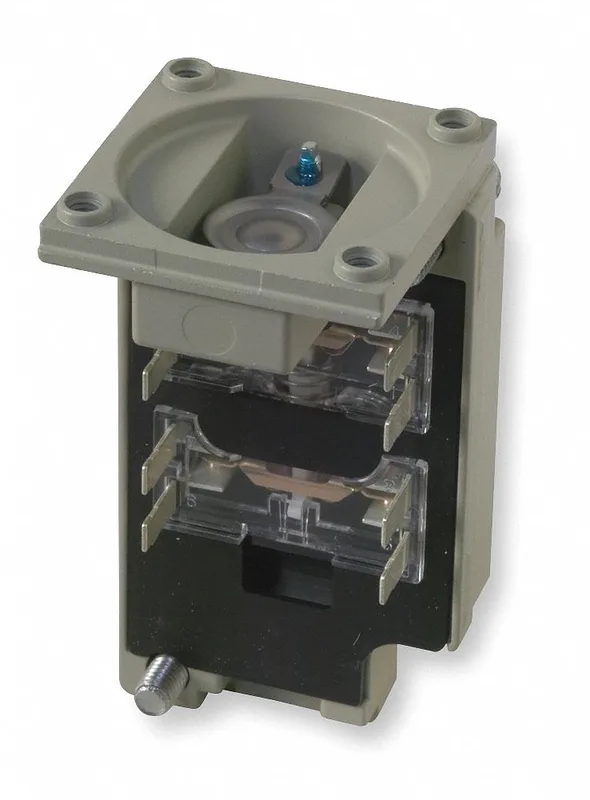

OMRON Limit Switch Box: EN50041 Body, 2 Mounting Holes, 2NO/2NC, Metallic
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Compatible with series | D4A-N |
| Contact form | 2NO/2NC |
| IP rating | IP67 |
| NEMA enclosure rating | 3; 4; 4X; 6P; 12; 13 |
| Mounting hole diameter | 0.4 in |
| Number of mounting holes | 2 |
| Mounting hole vertical center to center distance | 76 mm |
| Mounting hole horizontal center to center distance | 30 mm |
| Operating temperature - maximum | 212 °F |
| Operating temperature - minimum | -40 °F |
| Material | Stainless Steel |
| Standards | CSA; UL Listed |
All specifications
| Parameter | Value |
|---|---|
| Brand | OMRON |
| Body style | EN50041 |
| Display qty | 1 |
| Display sell UOM | EA |
| Indicating light | No Indicating Light Included |
| AC contact rating | 5 A @ 600 V |
| DC contact rating | Not Rated |
| Body configuration | Plug-In |
| Compatible with manufacturer model number | D4A1101N; D4A1102N; D4A1103N; D4A1105N; D4A1109N; D4A1110N; D4A1111N; D4A1114N; D4A1116N; D4A2501N; D4A2509N; D4A2510N; D4A2717N; D4A2918N |
MPN
D4A0700N
