Omron D4A1116N
MPND4A1116N

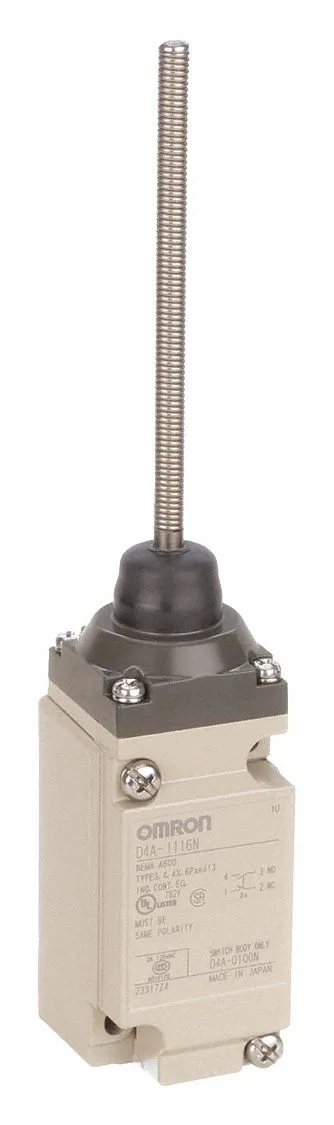

OMRON Coil Spring Limit Switch: Coil Spring, 2 Mounting Holes, Aluminum, 4.19 in Actuator Lg
$139.70 – $195.96Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | D4A |
| Actuation | Coil Spring |
| Contact form | SPDT |
| IP rating | IP67 |
| NEMA enclosure rating | 1; 2; 3; 4X; 5; 6P; 12; 13 |
| Mounting style | Surface |
| Mounting hole diameter | 0.2 in |
| Number of mounting holes | 2 |
| Mounting hole vertical center to center distance | 59 mm |
| Mounting hole horizontal center to center distance | 29 mm |
| Electrical connection | Screw Terminals |
| Operating temperature - maximum | 212 °F |
All specifications+20 ▾
| Parameter | Value |
|---|---|
| Operating temperature - minimum | -40 °F |
| Body depth | 1.73 in |
| Body width | 1.65 in |
| Body height | 2.97 in |
| Body material | Aluminum |
| Standards | CCC; CSA; UL Listed |
| Brand | OMRON |
| Action | Momentary |
| Pretravel | 5° |
| Total travel | 5° |
| Actuator length | 4.19 in |
| AC contact rating | 10 A @ 250 V |
| Actuator location | Top |
| DC contact rating | 0.4 A @ 250 V; 0.8 A @ 125 V; 10 A @ 14 V; 10 A @ 8 V; 6 A @ 30 V |
| Includes actuator | Actuator Included |
| Body configuration | Plug-In |
| Boot sealed actuator | Boot Included |
| Directional movement | CCW/CW |
| Resistance properties | Shock Resistant |
| Operating torque - maximum | 13.28 in-lb |
MPN
D4A1116N
