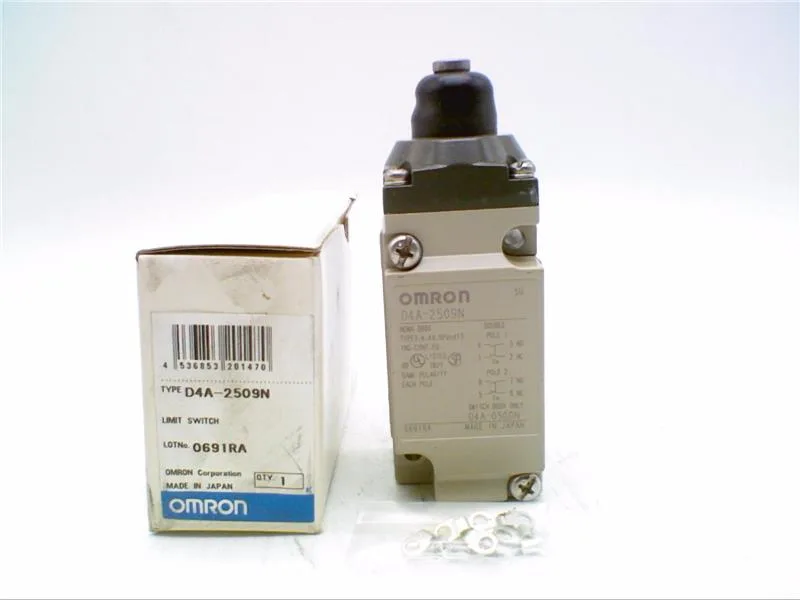

The Omron D4A2509N is a metallic-body plunger limit switch from the D4A series, built for industrial position sensing in washdown or dusty environments. Momentary action means the contacts return to their normal state as soon as the plunger is released — no latching, no memory. The DPDT contact arrangement switches two independent circuits simultaneously, which is useful for dual-channel safety or separate signal and load paths. Rated 3 A at 250 V AC for general-purpose switching, and 0.4 A at 125 V DC for inductive loads — the DC inductive rating is the one to watch if you are switching solenoids or small DC relays, because the arc suppression is derated compared to resistive loads. At 30 V DC the inductive rating rises to 3 A, and at 14 V DC it handles 5 A inductive, so the part is usable across a range of low-voltage DC circuits as long as you respect the voltage-dependent curve. The IP67 rating means the switch body and the boot-sealed plunger withstand immersion in 1 meter of water for 30 minutes — suitable for food processing lines, outdoor conveyor systems, or any area that sees hose-down cleaning. The NEMA enclosure ratings (1, 2, 3, 4X, 5, 6P, 12, 13) confirm it meets US enclosure standards for indoor/outdoor, dust-tight, and corrosion-resistant service.
Mechanical Fit and Installation
Surface-mount body with two 0.2-inch mounting holes spaced 59 mm vertically and 29 mm horizontally. The aluminum housing is shock-resistant, and the stainless steel roller on the plunger adds wear life in high-cycle applications. Screw terminals simplify field wiring — no special connector needed. Pretravel is 0.06 inches, differential travel 0.02 inches, total travel 0.26 inches, giving a crisp snap-action feel with minimal overtravel margin.
