Omron D4C0003
MPND4C0003

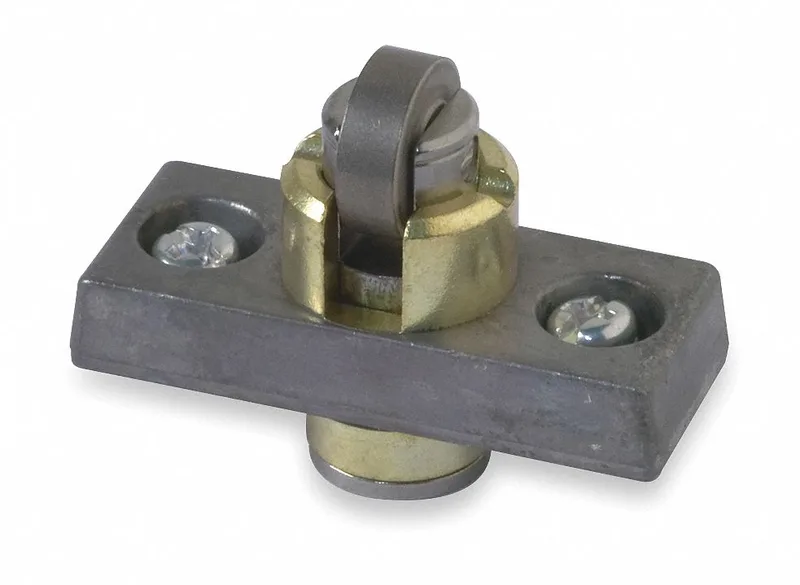

OMRON Limit Switch Head: Cross Roller Plunger, Top, D4C Series
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | D4C |
| Compatible with series | D4C |
| IP rating | IP67 |
| NEMA enclosure rating | 1; 3; 3R; 4; 5; 6; 12; 13 |
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | 14 °F |
| Arm width | 0.17 in |
| Arm material | Stainless Steel |
| Overall depth | 0.63 in |
| Overall width | 1.57 in |
| Overall height | 1.15 in |
| Standards | CCC; CSA; EN; UL Listed |
All specifications
| Parameter | Value |
|---|---|
| Brand | OMRON |
| Features | Multiple Mounting Possible; Sealed Cable Entrance |
| Pretravel | 0.07 in |
| Overtravel | 0.12 in |
| Display qty | 1 |
| Actuator style | Cross Roller Plunger |
| Operating force | 11.77 N |
| Display sell UOM | EA |
| Operating torque | 52.04 in-lb |
| Actuator location | Top |
| Arm adjustability | Fixed |
| Arm (Operator length) | 1.26 in |
| Differential travel | 0.01 in |
| Arm length - maximum | 1.26 in |
| Directional movement | Linear |
| Plunger adjustability | Fixed |
| Compatible with manufacturer model number | D4C1603 |
MPN
D4C0003
