Omron D4C1633
MPND4C1633

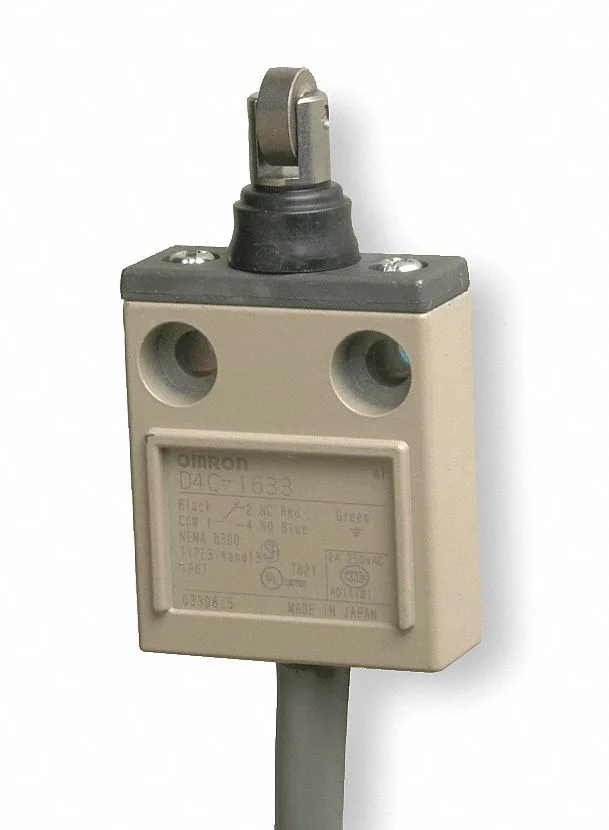

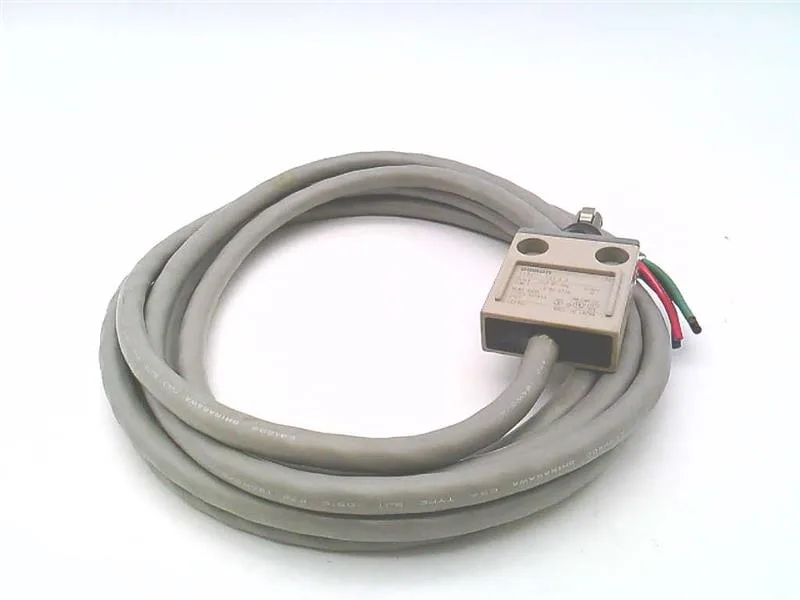

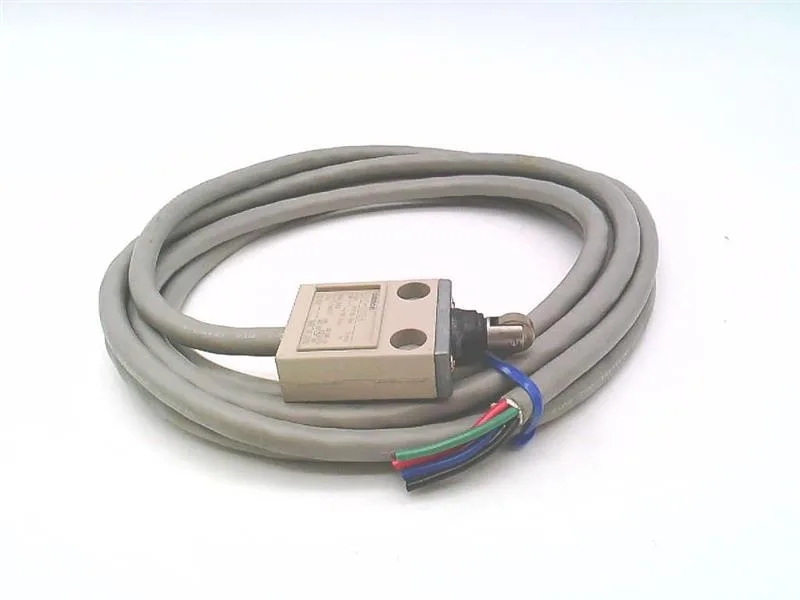

OMRON Roller Plunger Limit Switch: Roller Plunger, Metallic, Momentary, D4C
$44.45Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | D4C |
| Lamp type | LED |
| Actuation | Roller Plunger |
| Body material type | Metallic |
| Contact form | SPDT |
| IP rating | IP67 |
| NEMA enclosure rating | 3; 4; 13 |
| Mounting style | Surface |
| Number of mounting holes | 2 |
| Mounting hole diameter - NEW | 0.2 in |
| Mounting hole vertical center to center distance | 25 mm |
| Mounting hole horizontal center to center distance | 25 mm |
All specifications+36 ▾
| Parameter | Value |
|---|---|
| Electrical connection | 9.8 ft Cable (SJT(O)) |
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | -14 °F |
| Body depth | 0.62 in |
| Body width | 1.57 in |
| Body height | 1.92 in |
| Roller width | 0.17 in |
| Body material | Aluminum |
| Overall depth | 0.74 in |
| Overall width | 1.57 in |
| Overall height | 3.35 in |
| Roller material | Stainless Steel |
| Standards | CCC; CE; CSA; TUV; UL Listed |
| Brand | OMRON |
| Action | Momentary |
| Pretravel | 0.07 in |
| Display qty | 1 |
| Total travel | 0.19 in |
| Actuator style | Roller Plunger |
| Roller diameter | 0.47 in |
| Roller position | Top |
| Display sell UOM | EA |
| Overtravel - NEW | 0.12 in |
| AC contact rating | 5 A @ 250 V |
| Actuator location | Top |
| DC contact rating | 4 A @ 30 V |
| Includes actuator | Actuator Included |
| Body configuration | Plug-In |
| Differential travel | 0.01 in |
| Boot sealed actuator | Boot Included |
| Directional movement | Linear |
| Roller adjustability | Fixed |
| Plunger adjustability | Fixed |
| Operating force - maximum | 17.65 N |
| Operating torque - maximum | 156.22 in-lb |
| Operating torque - minimum | 5.31 in-lb |
MPN
D4C1633
