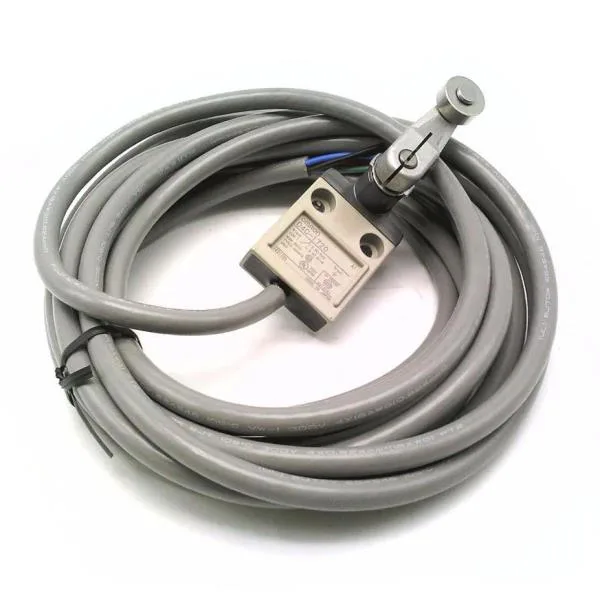

Omron D4C1720
MPND4C1720
OMRON Roller Lever Plunger Limit Switch: 25 mm Mounting Hole Vertical Center to Center Distance, 38°
$72.39Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | D4C |
| Lamp type | LED |
| Actuation | Roller Lever |
| Contact form | SPDT |
| IP rating | IP67 |
| NEMA enclosure rating | 3; 4; 13 |
| Mounting style | Surface |
| Mounting hole diameter | 0.2 in |
| Number of mounting holes | 2 |
| Mounting hole vertical center to center distance | 25 mm |
| Mounting hole horizontal center to center distance | 25 mm |
| Electrical connection | 16.4 ft Cable (SJT(O)) |
All specifications+37 ▾
| Parameter | Value |
|---|---|
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | 14 °F |
| Arm depth | 0.54 in |
| Arm width | 0.69 in |
| Body depth | 0.62 in |
| Body width | 1.57 in |
| Body height | 65 in |
| Arm material | Aluminum |
| Roller width | 0.28 in |
| Body material | Aluminum |
| Overall depth | 1.97 in |
| Overall width | 1.57 in |
| Overall height | 4.04 in |
| Roller material | Stainless Steel |
| Standards | CCC; CE; CSA; EN; UL Listed |
| Brand | OMRON |
| Action | Momentary |
| Pretravel | 25° |
| Overtravel | 40° |
| Total travel | 38° |
| Actuator style | Roller Lever Plunger |
| Actuator length | 1.5 in |
| Roller diameter | 0.68 in |
| Roller position | Side |
| AC contact rating | 5 A @ 250 V |
| Actuator location | Side |
| Arm adjustability | Fixed |
| DC contact rating | 4 A @ 30 V |
| Includes actuator | Actuator Included |
| Body configuration | Plug-In |
| Differential travel | 3° |
| Arm length - maximum | 1.84 in |
| Boot sealed actuator | No Boot Included |
| Directional movement | CCW/CW |
| Roller adjustability | Fixed |
| Plunger adjustability | Fixed |
| Operating force - maximum | 5.69 N |
MPN
D4C1720
