Omron D4CC1032 — Limit Switches

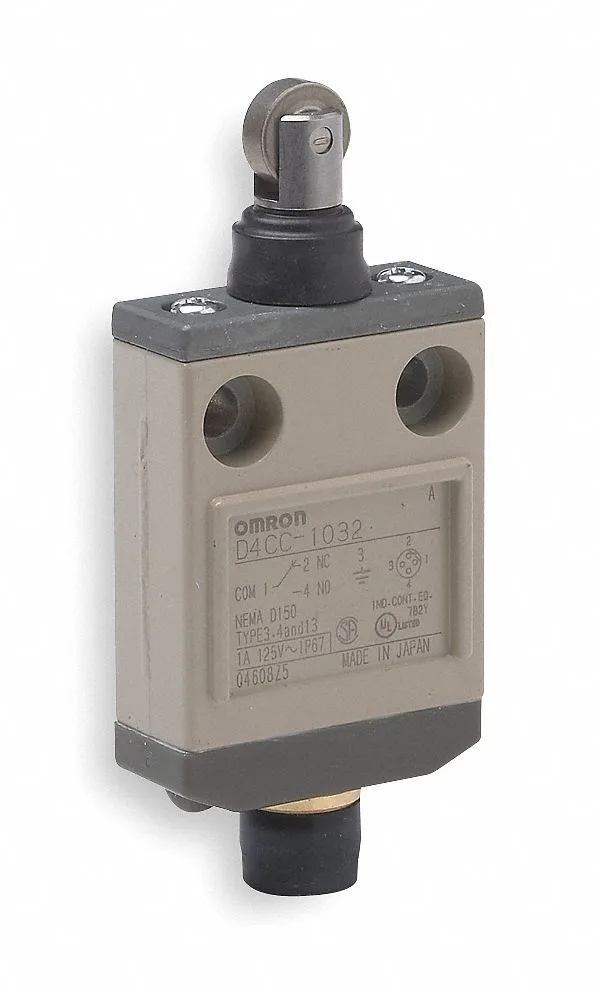

Omron D4CC1032 Limit Switch, Roller Plunger, SPDT, IP67, 1A

MPND4CC1032

Omron D4CC series, D4CC1032, limit switch, roller plunger, SPDT, momentary, IP67, 1 A @ 125 V AC, CSA, UL Listed.

$87.63 – $164.64Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

D4CC1032 key specifications
ParameterValue
SeriesD4CC
ActuationRoller Plunger
Body material typeMetallic
Contact formSPDT
IP ratingIP67
NEMA enclosure rating3; 4; 13
Mounting styleSurface
Number of mounting holes2
Mounting hole diameter - NEW0.2 in
Mounting hole vertical center to center distance25 mm
Mounting hole horizontal center to center distance25 mm
Electrical connection4-Pin M12 Connector

All specifications

D4CC1032 additional specifications
ParameterValue
Operating temperature - maximum158 °F
Operating temperature - minimum14 °F
Body depth0.63 in
Body width1.33 in
Body height2.13 in
Roller width0.17 in
Body materialAluminum
Roller materialStainless Steel
StandardsCSA; UL Listed
ActionMomentary
Pretravel0.07 in
Display qty1
Total travel0.19 in
Actuator styleRoller Plunger
Roller diameter0.47 in
Roller positionTop
Display sell UOMEA
Overtravel - NEW0.12 in
AC contact rating1 A @ 125 V
Actuator locationTop
DC contact ratingNot Rated
Includes actuatorActuator Included
Body configurationPlug-In
Differential travel0.01 in
Boot sealed actuatorBoot Included
Directional movementLinear
Roller adjustabilityFixed
Plunger adjustabilityFixed
Operating force - maximum17.65 N
Operating torque - maximum156.66 in-lb
Operating torque - minimum5.31 in-lb

Product details

The Omron D4CC1032 is a metallic-body limit switch with a roller plunger actuator, SPDT contact form, and momentary action — meaning the contacts return to their resting state the instant the plunger is released. The IP67 rating means the switch body and the boot-sealed actuator withstand direct hose-down and temporary immersion, so it's suited for washdown zones in food processing or outdoor conveyor lines. The 1 A @ 125 V AC contact rating is the headline limit for resistive loads; with no DC rating listed, this switch is intended for AC control circuits only.

Mounting and Connection Reality

Surface-mount body with two 0.2 in mounting holes — standard M4 or #10 hardware. The 4-pin M12 connector (micro-change style) is the field connection; no pigtail to strip, no terminal screws to torque. That connector is the first thing to check on a line-down call: a bent pin or corroded contact in the mating cable will look like a dead switch. The aluminum body and stainless steel roller hold up in washdown and corrosive atmospheres, backed by NEMA 3, 4, and 13 ratings for indoor and outdoor enclosures.

Frequently asked questions

What is the closest pin-compatible alternative in the D4CC family?

The D4CC series includes variants with different actuator styles (plunger, roller lever, etc.) and contact configurations, but the D4CC1032 is the roller plunger, SPDT, momentary version. A direct pin-compatible swap would be another D4CC with the same M12 connector and SPDT contact form — verify the actuator style matches your cam or slide profile.

What compliance documentation is available for the D4CC1032?

The switch carries CSA and UL Listed marks, meaning it has been evaluated to North American safety standards. RoHS and REACH compliance documentation is typically available from Omron for this series, though the specific declaration should be requested with the RFQ.
