Omron D4E1B10N

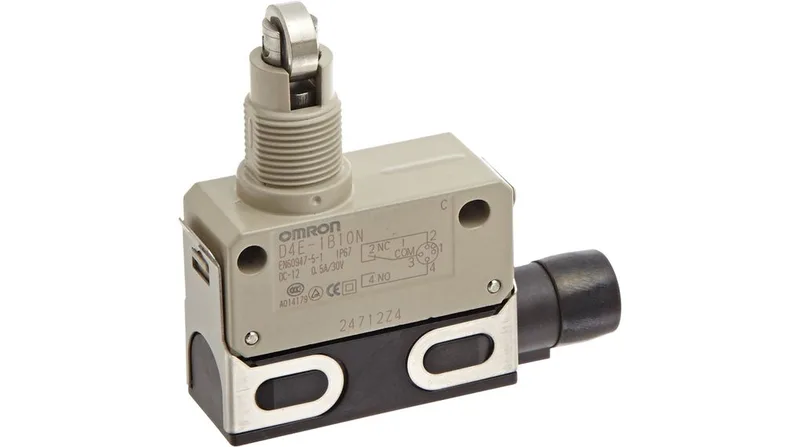

Omron D4E1B10N Limit Switch, Cross Roller Plunger, IP67

MPN D4E1B10N

Omron D4E Series limit switch, cross roller plunger actuator, 1NC+1NO contacts, IP67, 5 A switching current, 250 V insulation voltage.

$36.45 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

D4E1B10N specifications
ParameterValue
SeriesD4E Series
ActuationCross Roller Plunger
Insulation voltage ui250 V
IP ratingIP67

Product details

The D4E1B10N is a D4E Series limit switch from Omron with a cross roller plunger actuator. It carries a 1NC + 1NO contact configuration rated for 5 A at 250 VAC and 5 A at 14 VDC, with an insulation voltage of 250 V. The IP67 protection rating means the housing and actuator seal against dust ingress and temporary immersion — suitable for washdown zones on packaging or material handling lines.

The one-touch connection terminal simplifies wiring — strip 8 mm, insert, and the spring cage closes automatically. The 11.77 N operating force provides a positive snap action; the cross roller plunger allows actuation from multiple approach angles, which reduces alignment sensitivity on cam tracks or sliding doors.

MPN
D4E1B10N
