The Omron D4E1C10N is a snap-action limit switch from the D4E Series, fitted with a plunger actuator and one-touch connection terminal. The contact block carries 1NC + 1NO circuits rated for 5 A at 250 V AC or 14 V DC. Its IP67 sealing means it can be installed in washdown zones, dust-laden environments, or outdoors without an additional housing. One-touch connectors speed wiring on repetitive panel builds, though verify the mating plug is compatible with the pinout. The insulation voltage of 250 V covers signal and control circuits between contacts and ground. Note the DC switching voltage is limited to 14 V, so this switch is best suited for low-voltage DC loads.

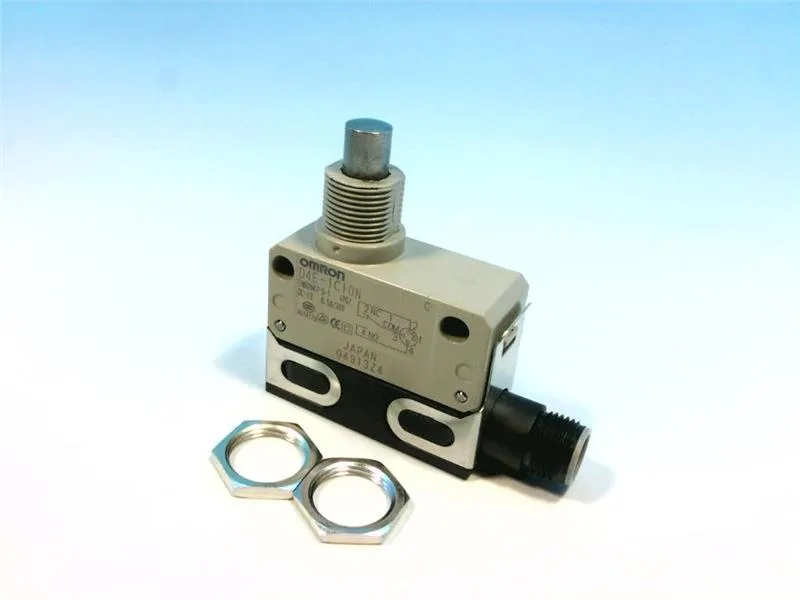

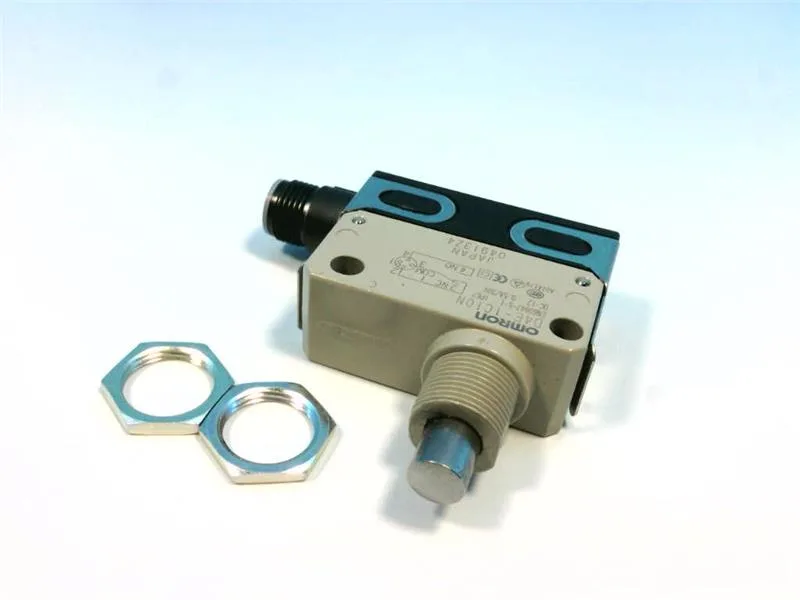

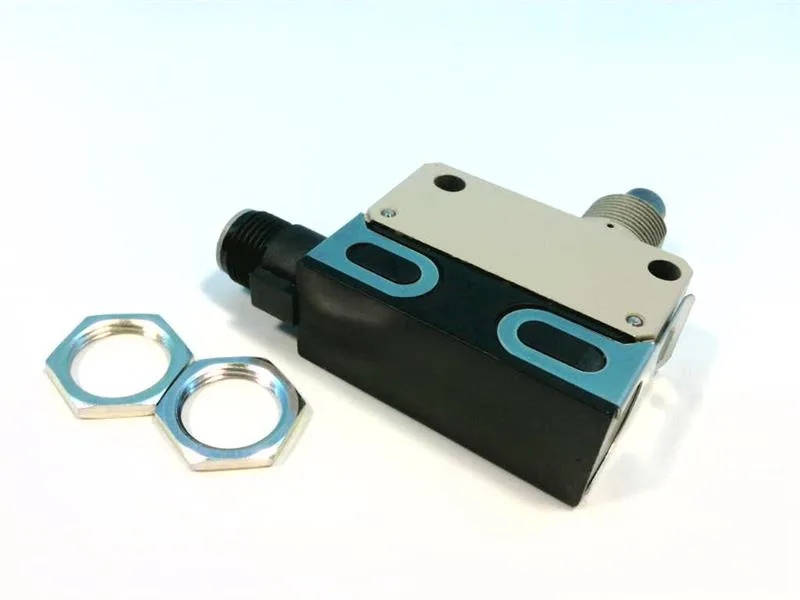

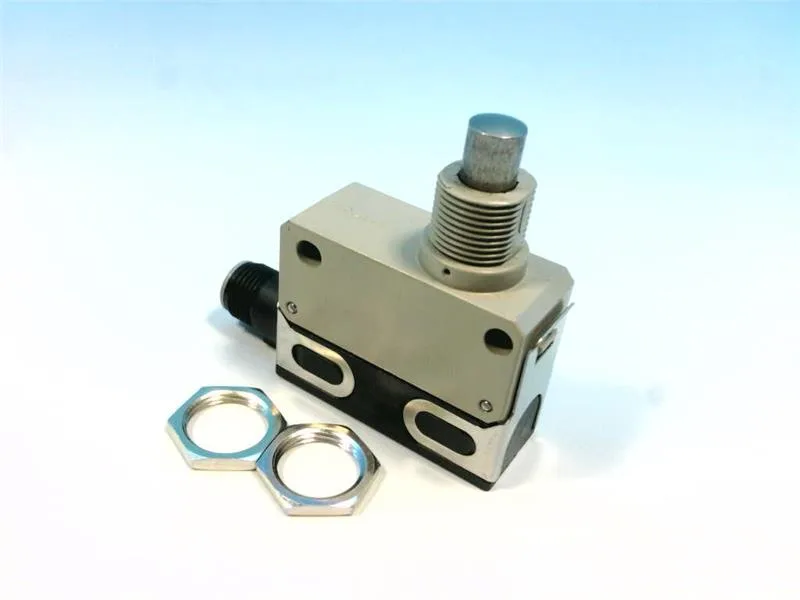

Omron D4E1C10N Limit Switch, Plunger, 1NC+1NO, IP67
MPN D4E1C10N
Omron D4E1C10N, D4E Series limit switch, plunger actuator, 1NC+1NO, IP67, 5 A switching, 250 V insulation, one-touch connection.
$30.10
Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | D4E Series |
| Actuation | Plunger |
| Insulation voltage ui | 250 V |
| IP rating | IP67 |
Product details
D4E1C10N Datasheet
MPN
D4E1C10N
