The D4F3205D is a D4F-series limit switch with a roller lever actuator, rated IP67 for washdown environments. Contacts are slow-action, 2NO/2NC, switching up to 750 mA at 240 VAC or 270 mA at 250 VDC. The 5-meter cable is factory-attached, so plan your conduit entry accordingly — no terminal block to swap.

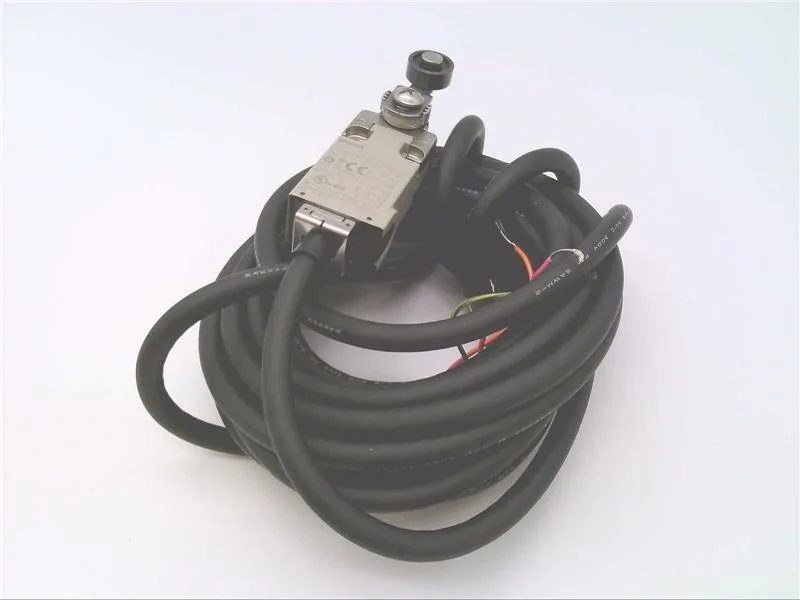

Omron D4F3205D Limit Switch, Roller Lever, 2NO/2NC, IP67
MPND4F3205D
Omron D4F series limit switch, D4F3205D, roller lever actuator, 2NO/2NC slow-action contacts, IP67, 5 m cable.
$84.71Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | D4F |
| Actuation | Roller Lever |
| Operating force | 5 N |
| Termination type | Cable, 5 m |
| IP rating | IP67 |
| Insulation voltage | 500 VDC |
| Contact element type | Slow-Action |
| Contact configuration | 2NO;2NC |
| Switching current - AC | 750 mA |
| Switching current - DC | 270 mA |
| Switching voltage - AC | 240 V |
| Switching voltage - DC | 250 V |
Product details
Frequently asked questions
What is D4F3205D's listed series?
The D4F3205D belongs to the Omron D4F series of limit switches.
What is D4F3205D's actuator type?
It uses a roller lever actuator.
What is the contact configuration and switching ratings?
The D4F3205D has 2NO/2NC slow-action contacts, rated for 750 mA at 240 VAC and 270 mA at 250 VDC.
MPN
D4F3205D
