Omron D4GS-N2R — Limit Switches

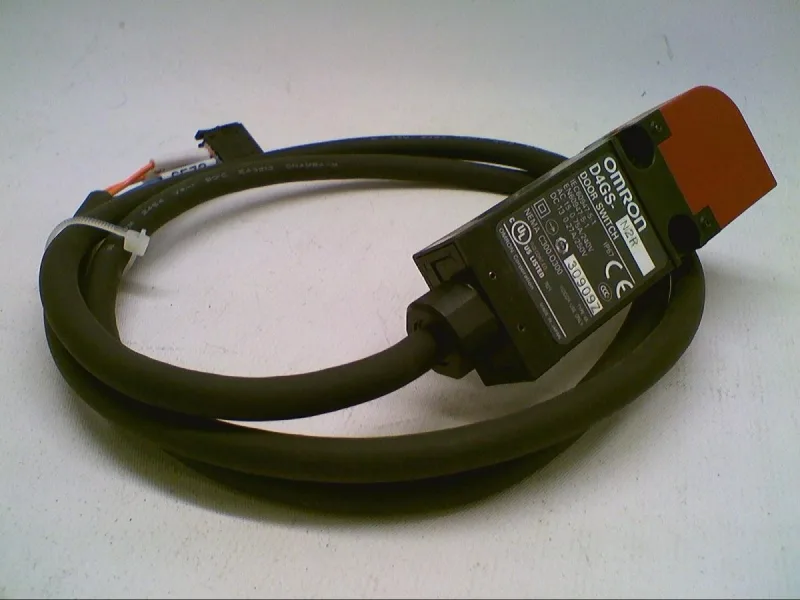

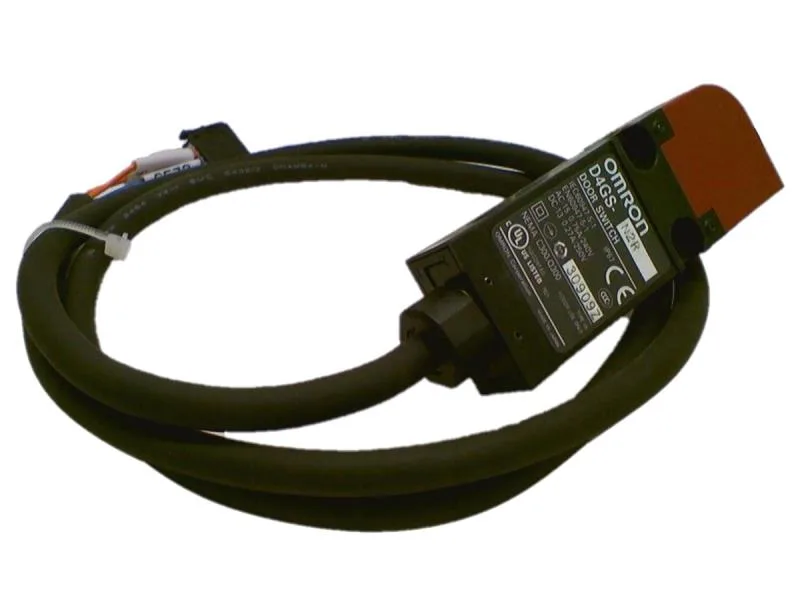

Omron D4GS-N2R Slim Safety Door Switch, 2NC, 1m Cable

MPND4GS-N2R

Omron D4GS-N2R, Slim Safety Door Switch, 2NC slow-action contacts, 1m cable, horizontal key insertion, 2.5 A Ith.

$50.93 – $127.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

D4GS-N2R — Specifications
ParameterValue
Weight0.12 Kg
Cable length1 m
Product typeSlim Safety Door Switch
Built-in switch2 = 2NC (slow-action)
Conditional short-circuit current100 A (EN60947-5-1)
Direction of operation key insertionR = Horizontal
Conventional free air thermal current2.5 A (EN60947-5-1)

Product details

The Omron D4GS-N2R is a slim-profile safety door switch with two normally-closed slow-action contacts (2NC). It's designed for interlocking guard doors on machinery where panel space is tight — the slim body fits where a standard safety switch won't. The horizontal key insertion (R-type) means the actuator enters from the side, which suits sliding or hinged guards where vertical access is blocked.

The conventional free-air thermal current (Ith) is 2.5 A per EN60947-5-1. That's the continuous current the contacts can carry in free air without exceeding temperature rise limits — it's your sizing figure for the control circuit load, not a switching rating. For a safety circuit feeding a PLC input or a safety relay, 2.5 A is ample; just make sure the upstream protection coordinates with the 100 A withstand.

Frequently asked questions

What is the D4GS-N2R used for?

It's a slim safety door switch used to interlock guard doors on industrial machinery. The 2NC slow-action contacts provide a positive-break safety function, typically wired into a safety relay or safety PLC input circuit to detect when a guard is open.

Where can I buy the D4GS-N2R?

This part is sourced and quoted to order against an RFQ through independent industrial-automation distribution. Submit a request for quote to confirm current availability and pricing.

What is the cable length on the D4GS-N2R?

The D4GS-N2R comes with a 1 m pre-wired cable. No separate connector is needed.

MPN
D4GS-N2R
