Omron D4GS-N4T-3

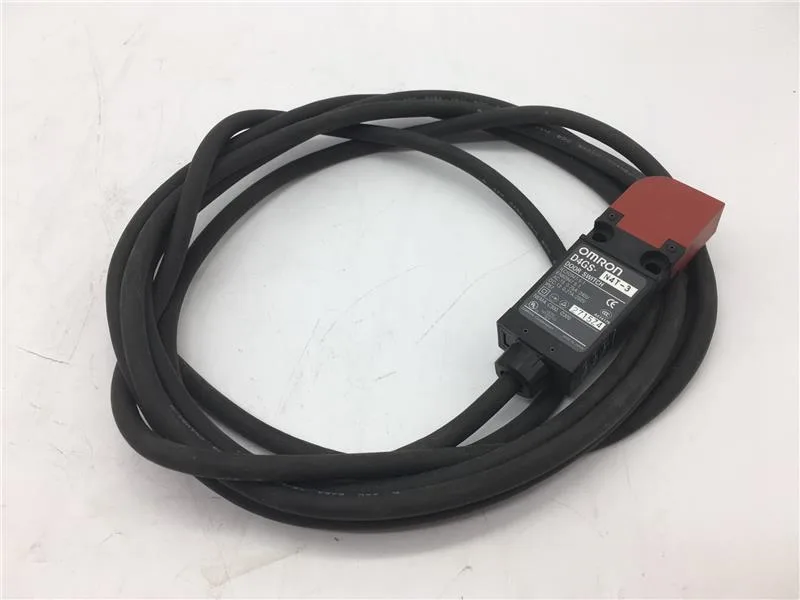

Omron D4GS-N4T-3 Slim Safety Door Switch, 3NC, 3m Cable

MPN D4GS-N4T-3

Omron D4GS-N4T-3, Slim Safety Door Switch, 3NC slow-action contacts, 3m cable, vertical key insertion, Ith 2.5 A.

$115.00 – $119.38 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

D4GS-N4T-3 specifications
ParameterValue
Product typeSlim Safety Door Switch
Cable length3 m
Weight0.12 Kg

Product details

The D4GS-N4T-3: The 3NC contact configuration means all three contacts are normally-closed, breaking the safety circuit on door opening. This is typical for guard monitoring where a fault (welded contact) must be detectable — the slow-action mechanism ensures positive opening per IEC 60947-5-1, so the contacts are mechanically forced apart even if welded. The 2.5 A Ith rating covers the signal-level loads in a safety PLC input or relay coil; it's not a power-switching contact.

Deployment context

This is a slim safety door switch — the slim body saves DIN-rail or panel space in multi-door guarding applications (e.g., light curtain bypass, interlock on access panels for conveyors or packaging machines). The 3 m cable reaches from the door frame to a junction box or safety relay module without a splice. Vertical key insertion (T-type) means the actuator enters from above — common on hinged doors where the switch mounts on the fixed frame and the key on the door edge.

MPN
D4GS-N4T-3
