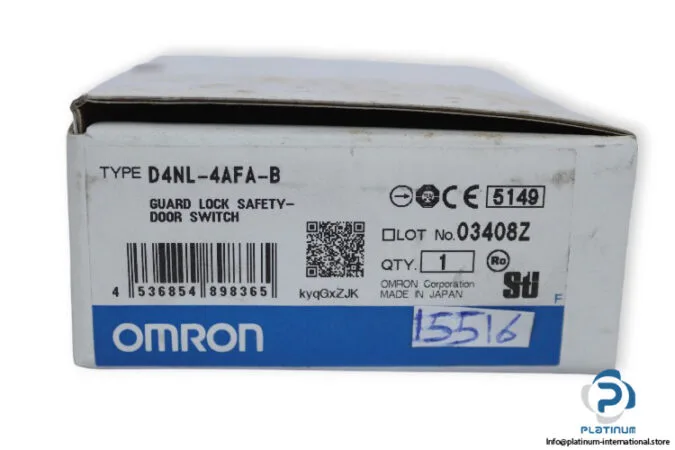

Omron D4NL-4AFA-B
MPND4NL-4AFA-B
GUARD LOCK SAFETY|STI D4NL-4AFA-B GUARD LOCK SAFETY
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026

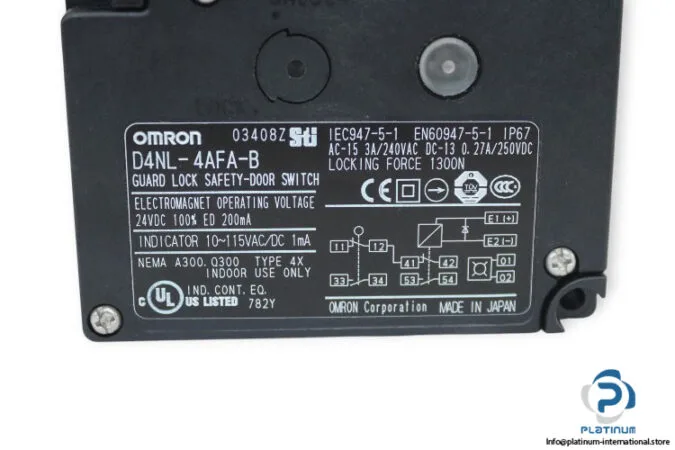

Specifications
| Parameter | Value |
|---|---|
| Type | Guard Lock Safety Door Switch |
| Series | D4NL |
| Type of product | Guard Lock Safety Door Switch |
| Release key type | Standard (Resin) |
| Rated operating voltage | 24 V DC |
| Current consumption | 200 mA |
| Head mounting direction | Four Mounting Directions Possible |
| Operating temperature | -10 … 55 °C |
| Weight | 0,41 kg |
| Material | Plastic |
| Dimensions | 95 x 88.5 x 35.5 mm |
| Model | D4NL-4AFA-B |
All specifications+11 ▾
| Parameter | Value |
|---|---|
| Condition | New |
| Indicator | 10 … 115 V AC/DC (Orange LED Indicator) |
| Shelf no. | 240924 , 241124 |
| Manufacturer | Omron |
| Locking force | 1300 N |
| Conduit outlet | M20 |
| Contact ratings | AC-15: 240 V, 3 A |
| IP rating | IP67 |
| Release key position | Bottom |
| Door lock and release | Mechanical Lock/24 V DC Solenoid Release |
| Built-in switch contact (with door open (Closed detection switch and lock monitor switch contacts)) | 1 Normally Open (NO) / 1 Normally Closed (NC) + 1 Normally Open (NO) / 1 Normally Closed (NC) |
MPN
D4NL-4AFA-B
