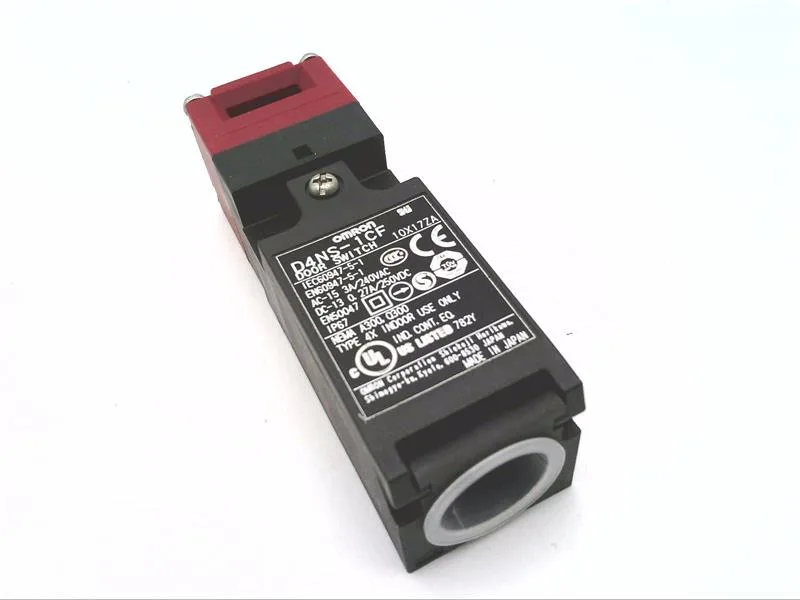

Omron D4NS1CF Safety Interlock Switch
MPND4NS1CF
Safety Interlock Switch, 1NO / 2NC, IP67, Screw Terminal
$25.40 – $37.34Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Depth | 30 mm |
| Width | 31 mm |
| Height | 96 mm |
| Series | D4NS |
| Type | Interlock Switch |
| Actuation | Key |
| Housing material | Resin |
| Termination type | Screw Terminal |
| IP rating | IP67 |
| Contact configuration | 1NO;2NC |
| Switching current - AC | 3 A |
| Switching current - DC | 270 mA |
| Switching voltage - AC | 240 V |
| Switching voltage - DC | 250 V |
| Service life - electric | 500000 Cycles |
| Number of head directions | 4 |
| Service life - mechanical | 1 Million Cycles |
MPN
D4NS1CF
