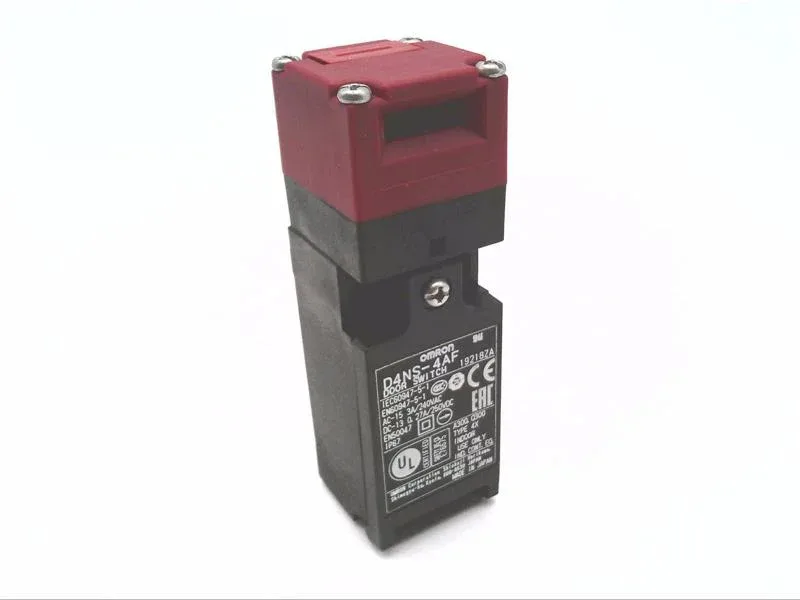

Omron D4NS4AF Safety-Door Switch, 1NO+1NC, 10 A AC, 250 V AC, IP67, 30 mm depth, 31 mm width, 96 mm height, D4NS Series.
| Parameter | Value |
|---|---|
| Depth | 30 mm |
| Width | 31 mm |
| Height | 96 mm |
| Series | D4NS Series |
| Type | Safety-Door Switch |
| IP rating | IP67 |
| Contact configuration | 1NO + 1NC |
| Switching current - AC | 10 A |
| Switching voltage - AC | 250 V |
| Service life - electric | 300000 Cycles |
| Service life - mechanical | 1 Million Cycles |
The D4NS4AF is a safety-door switch — a hard-wired interlock that proves a guard enclosure is closed before the machine's control circuit allows a next motion. Its 1NO+1NC contact configuration provides a normally-open enabling path and a normally-closed feedback path in a single body, so a single device monitors both the command and the confirmation leg of the safety circuit.
The D4NS4AF is sourced and quoted to order against your BOM quantity — availability and lead time are confirmed at RFQ. Submit a request and the supply desk will check independent distribution channels with full traceability.
