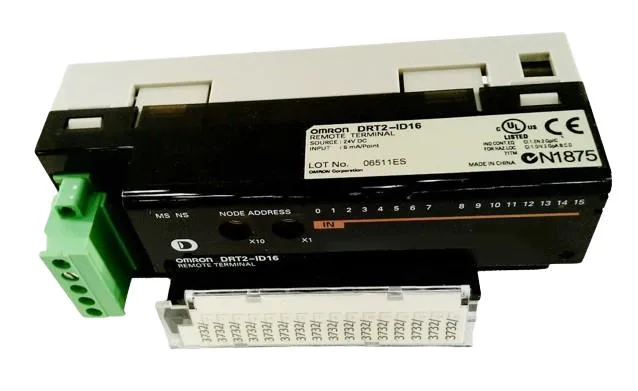

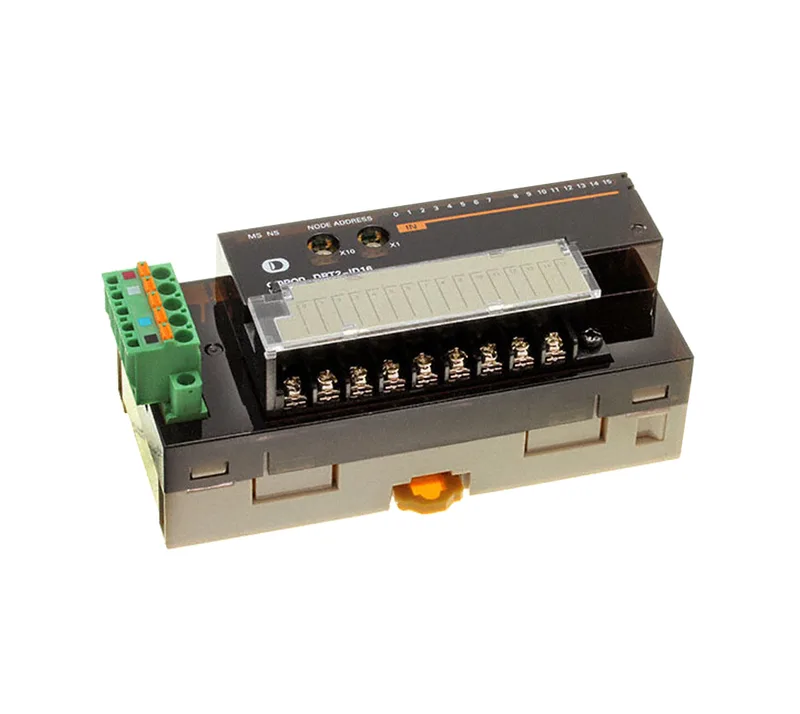

DRT2-ID16 is a transistor remote I/O terminal with M3 screw terminal I/O connections. It runs on a 24 VDC I/O power supply, with the internal circuit powered from the communications connector. It operates from –10°C to 55°C and 25 to 85% ambient humidity (non-condensing).
DRT2-ID16 Transistor Remote I/O Terminal, M3 Screw, 24 VDC
MPNDRT2-ID16
DRT2-ID16 Transistor Remote I/O Terminal, M3 Screw Terminals, 24 VDC I/O Supply, –10 to 55°C.
$295.47 – $350.37Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.14 Kg |
| Product type | Transistor Remote I/O Terminal |
| I (O connections) | M3 Screw terminals |
| Ambient operating humidity | 25 to 85% (with no condensation) |
| Ambient storage temperature | -25°C to 65°C |
| Ambient operating temperature | –10°C to 55°C |
| Rated i (O power supply voltage) | 24 VDC |
| Rated internal circuit power supply voltage | Supplied from the communications connector |
Product details
MPN
DRT2-ID16
