Omron DRT2 series, DRT2-ID16TA-1, PLC I/O & Expansion Module, mature lifecycle, 0.45 kg.
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |

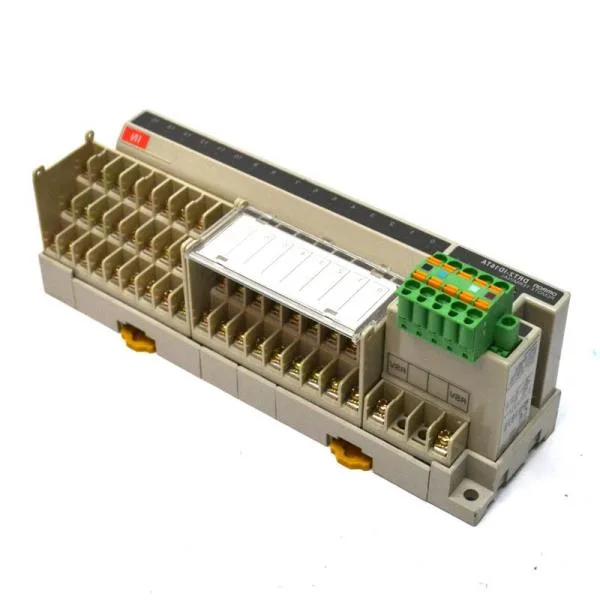

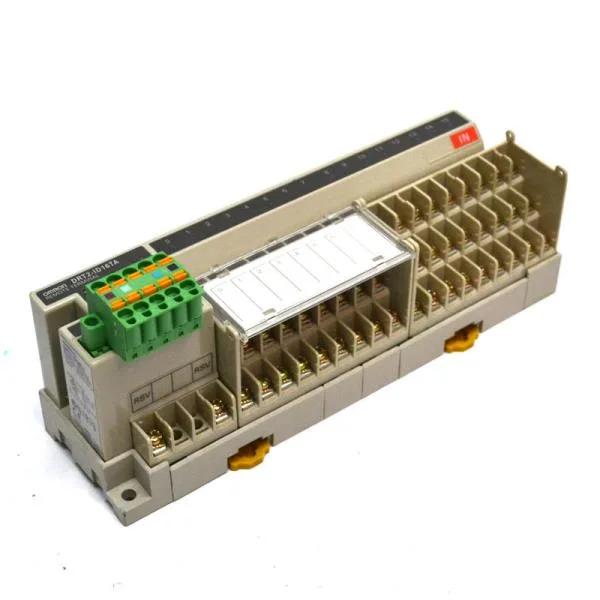

The DRT2-ID16TA-1 is a 16-point digital input module from Omron's DRT2 series, used to bring discrete field signals (limit switches, proximity sensors, pushbuttons) back to a PLC backplane. It sits in the PLC I/O & Expansion Modules category, meaning it expands the I/O count of an existing Omron PLC rack rather than serving as a standalone controller.
The DRT2-ID16TA-1 is a DRT2 series expansion module designed to work with Omron PLC racks that accept DRT2-series I/O. Compatibility with specific CPU models (such as CJ series or CJ2M) depends on the rack backplane and firmware — verify slot compatibility against your PLC's I/O configuration manual before ordering.
The DRT2-ID16TA-1 pinout is defined in the Omron DRT2 series product manual. The 16 digital inputs are typically arranged in two groups of eight, with a common terminal per group. Refer to the official datasheet for the exact terminal assignment and wiring diagram.
