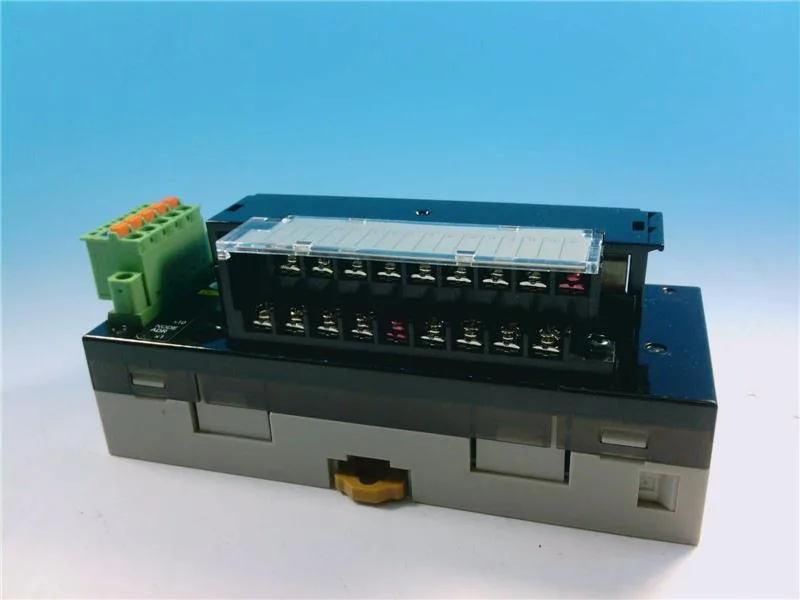

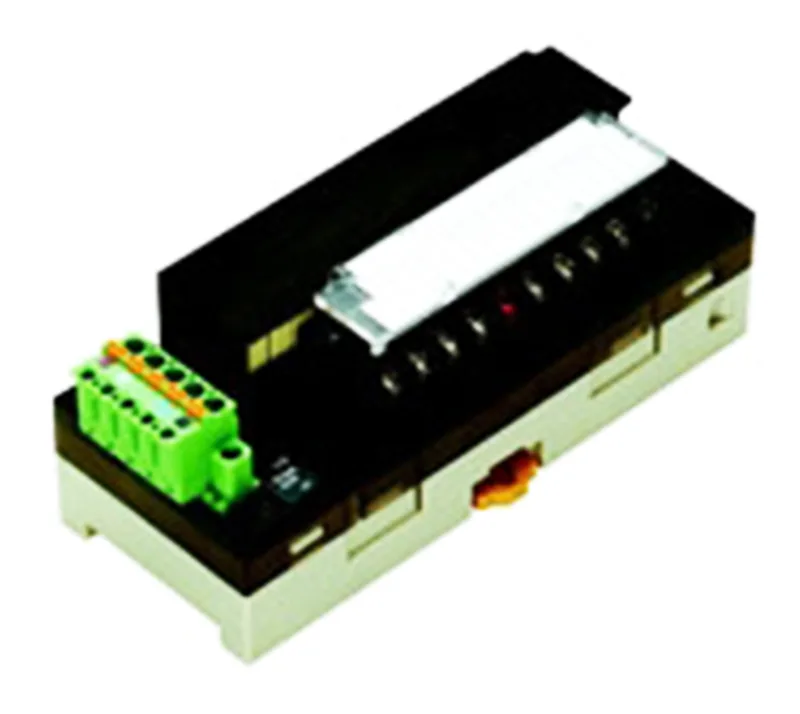

DRT2-ROS16 - Omron
MPNDRT2-ROS16
Remote I/O Terminal with Relay Outputs
$364.15 – $397.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Max. contact voltage | 250 VAC, 125 VDC |
| Communications power supply voltage | 11 to 25 VDC (Supplied from communications connector) |
| Current | 3A *2 |
| Max. contact current | 3A |
| Mounting method | 35-mm DIN rail mounting |
| Min. applicable load (reference value) | 1 mA at 5 VDC |
| Ambient operating temperature | -10°C to 55°C |
| Shock resistance | 100 m/s2 |
| Vibration resistance | 10 to 55 Hz, 0.7-mm double amplitude, 80 min each in the X, Y, and Z directions |
| Ambient operating humidity | 25% to 85% (with no condensation) |
| Weight | 260 g max. |
| Shipping weight | 1.5 Kg |
All specifications+12 ▾
| Parameter | Value |
|---|---|
| Rated load | Resistive load: 2 A at 250 VAC, 8 A per common, 2 A at 30 VDC, 8 A per common |
| Consumption | 215 mA max. (24 VDC), 395 mA max. (11 VDC) |
| Manufacturer | Omron |
| Mounted relays | DRTA-NY5W-K *1 |
| Noise immunity | Conforms to IEC61000-4-4, 2 kV (power line) |
| Ambient atmosphere | No corrosive gases |
| Dielectric strength | 500 VAC (between isolated circuits) |
| Estimated lead time | Usually ships in 1-10 working days. |
| Insulation resistance | 20 MΩ min. |
| Max. switching capacity | 750 VA AC, 90 VDC |
| Screw tightening torque | M2 (communications connector screws): 0.2 to 0.3 N·m , M3 (screw terminals): 0.5 N·m , M3 (mounting screws): 0.5 N·m |
| Ambient storage temperature | -25°C to 65°C |
MPN
DRT2-ROS16
