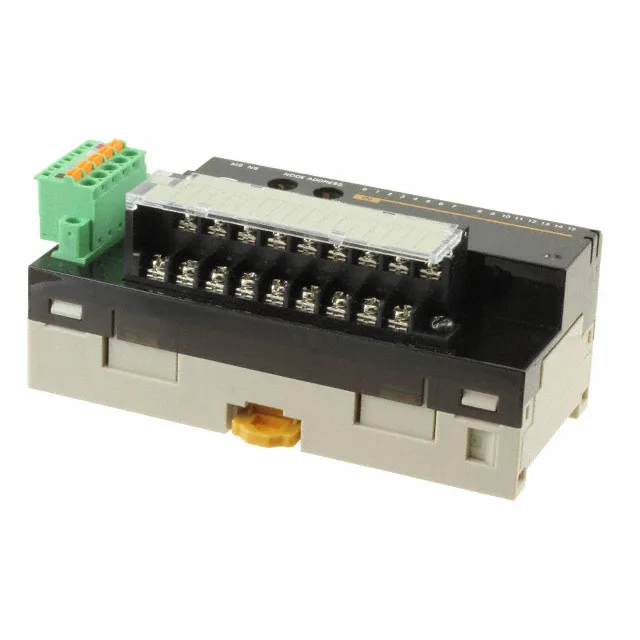

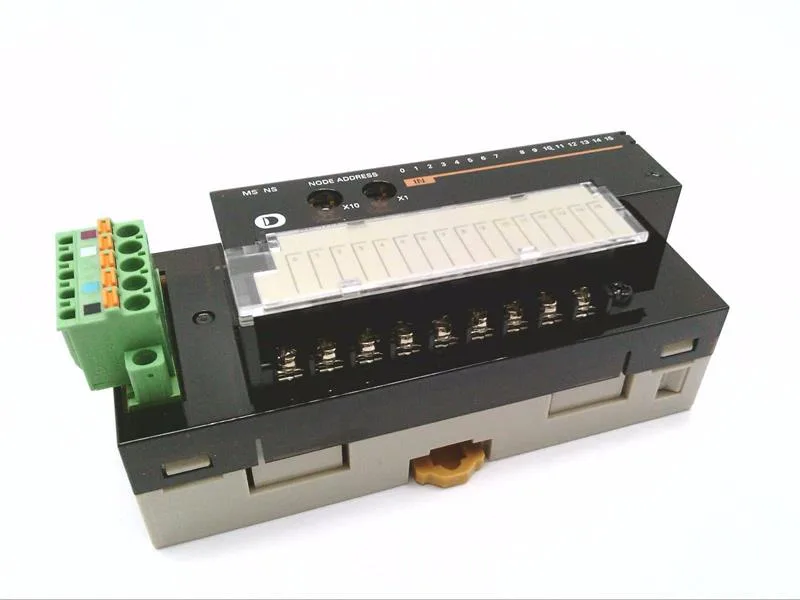

Omron DRT2ID161

Omron DRT2ID161 16-PNP Input, IP67, Mature

MPN DRT2ID161

Omron DRT2ID161 Remote I/O Terminal, 16 PNP inputs, 15 VDC, IP67, 35 mm DIN Rail mounting, mature lifecycle.

$160.10 – $339.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

DRT2ID161 specifications
ParameterValue
Enclosure typeIP67
Voltage15 VD
Supply voltage20.4 V
Current0.001 A
Mounting35 mm DIN rail
Temp operating max55 °C
Temp operating min-10 °C
On delay time0.0015 s
Off delay time0.0015 s
Circuits per common count16\

Product details

16-point PNP input block for Omron PLC expansion

The DRT2ID161: internal common is PNP, input threshold 15 VD nominal; off-state leakage 0.001 A.

Integration notes for a field-replaceable I/O slice

This module is a drop-in replacement for the DRT2-ID16-1—same MPN, same wiring, no programming changes. The 16 circuits share a common; plan group isolation accordingly. IP67 means it's sealed against dust and jets of water—fine for conveyor-side cabinets or washdown lines, but not submersible. The 115 mm length fits a standard DIN rail section with room to spare for a small terminal block below.

MPN
DRT2ID161
