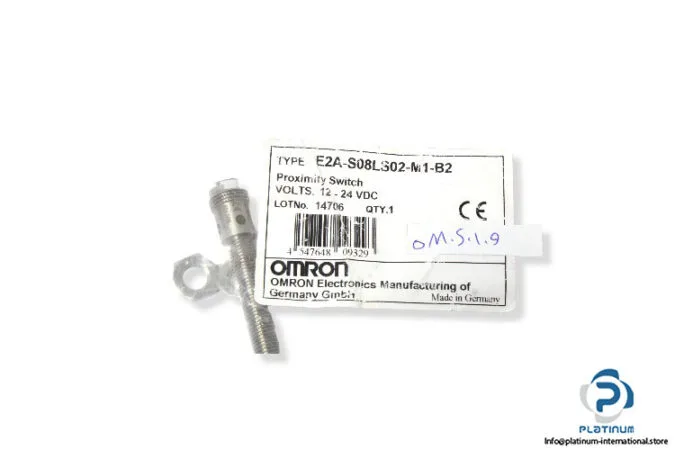

Omron E2A-S08LS02-M1-B2 is an M12-connected inductive proximity sensor in a compact M8 cylindrical stainless steel body. It detects ferrous metal targets at up to 2 mm and switches a PNP normally-closed output on 12–24 VDC. The wide -40 to 70°C range suits freezer lines or hot manufacturing zones.
Omron E2A-S08LS02-M1-B2 Inductive Proximity Sensor, M8, PNP,
MPNE2A-S08LS02-M1-B2
Omron E2A-S08LS02-M1-B2 inductive proximity sensor, cylindrical M8, PNP normally closed output, 2 mm sensing range, 12–24 VDC supply, M12 connector, stainless steel housing, -40…70°C operating temperature.
$24.13Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Type | Inductive Proximity Sensor |
Output
| Parameter | Value |
|---|---|
| Operation mode | Normally closed |
Mechanical
| Parameter | Value |
|---|---|
| Housing material | Stainless steel |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -40 … 70°C |
Other specifications
| Parameter | Value |
|---|---|
| Model | E2A-S08LS02-M1-B2 |
| Weight | 0,06 kg |
| Housing | Cylindrical |
| Condition | New |
| Shelf no. | 240405 |
| Dimensions | M8 |
| Sensing distance | 2 mm |
| Connector type | M12 |
| Type of product | Inductive Proximity Sensor |
| Electrical design | PNP |
| Operating voltage | 12… 24 V DC |
Product details
MPN
E2A-S08LS02-M1-B2
