Omron E2AS12KN08M1B1OMS

E2AS12KN08M1B1OMS Inductive Sensor, 8 mm, Non-Flush, M12, 20

MPN E2AS12KN08M1B1OMS

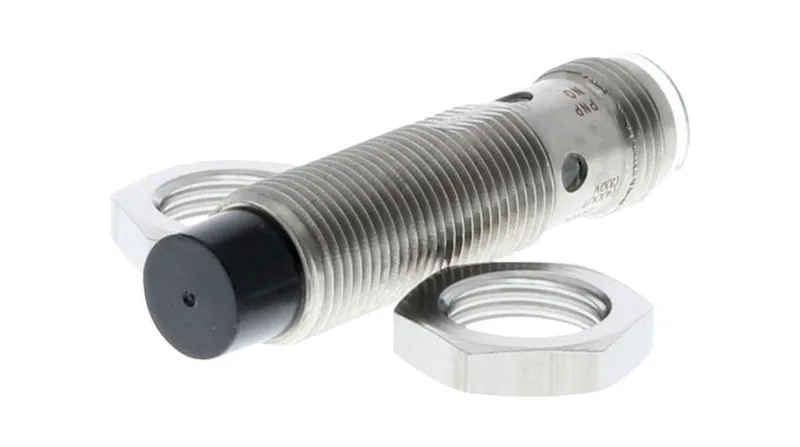

Omron E2A series M12 inductive proximity sensor, non-flush, 8 mm sensing range, stainless steel housing, M12 connector, NO output, IP67/IP69K.

$61.03 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

E2AS12KN08M1B1OMS specifications
ParameterValue
SeriesE2 A
Current10 mA
IP ratingIP67 / IP69K
MountingNon Flush Mount
Width17 mm
Height17 mm
Housing materialStainless Steel
Length48 mm
Construction formM12

Product details

The E2AS12KN08M1B1OMS: M12 inductive sensor in the E2A series, non-flush mount, with a stainless steel housing and 8 mm sensing distance. NO output rated 200 mA over 10–32 VDC. Connector is M12, 4-pin. Environmentally rated IP67 and IP69K, so it handles high-pressure washdown. Operating temperature spans -40 to 70 °C. Current draw under 10 mA.

Comparing with the flush-mount sibling

The closest functional peer in the same M12 form factor is the E2AM12KS04M1B14OMS. That part is flush mount with brass housing and 4 mm sensing range. E2AS12KN08M1B1OMS is non-flush, stainless steel, and reaches 8 mm — double the sensing distance. Same connector, same voltage and load ratings, same connector pinout. But the mounting style difference is decisive: non-flush requires more free space around the sensor face, so it won't drop into a panel drilled for a flush mount without repositioning the target or the bracket.

MPN
E2AS12KN08M1B1OMS
