Omron E2AS12KN08WPB12MOMS — Proximity Sensors

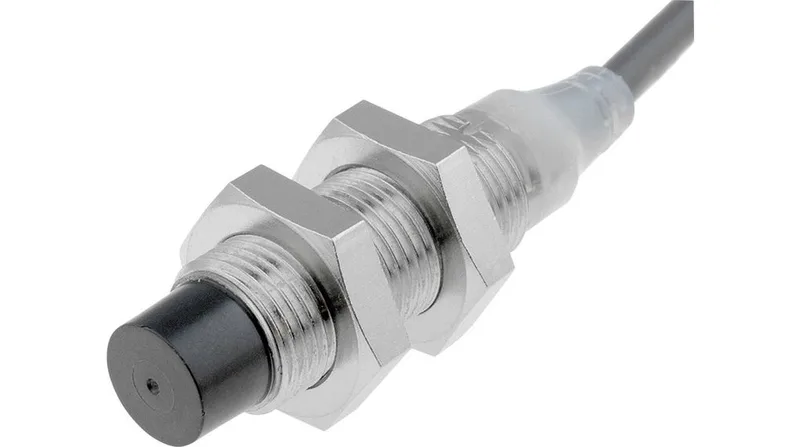

Omron E2AS12KN08WPB12MOMS M12 Non-Flush 8mm 200mA

MPNE2AS12KN08WPB12MOMS

Omron, E2A series, M12 non-flush inductive sensor, 200 mA, NO output, 8 mm sensing, IP67/IP69K, stainless steel housing.

$57.26Ref. price · indicative, final on quote
Omron E2AS12KN08WPB12MOMS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2AS12KN08WPB12MOMS — Identification
ParameterValue
SeriesE2A
E2AS12KN08WPB12MOMS — Sensing
ParameterValue
Sensing distance, max.8 mm
E2AS12KN08WPB12MOMS — Electrical
ParameterValue
Operating voltage, max.32 V
Operating voltage, min.10 V
Termination typeStranded Wire, 3-Pin
E2AS12KN08WPB12MOMS — Output
ParameterValue
Switching frequency1 kHz
Load current200 mA
E2AS12KN08WPB12MOMS — Mechanical
ParameterValue
Mounting typeNon Flush Mount
Length50.3 mm
Housing materialStainless Steel
E2AS12KN08WPB12MOMS — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-40 °C
IP protection ratingIP67;IP69K

Product details

How it sits against the flush-mount sibling

The equivalent flush-mount version is E2AM12KS04M1B14OMS — brass housing, M12 connector (no pigtail), 4 mm sensing distance, same IP rating. The E2AS12KN08WPB12MOMS trades a shorter standoff for double the reach and stainless corrosion resistance. If your panel already has M12 pre-wired drops, the connector variant saves termination time; if the environment is wet or acidic, the stainless barrel is the pick. Both share the 17 mm hex body and 200 mA switching budget, so mount cutouts and driver circuits carry over.

Current lifecycle stage — actively manufactured. Source to order for lead time and pricing.

Frequently asked questions

What is the difference between this sensor and the flush-mount E2AM12KS04M1B14OMS?

The E2AM12KS04M1B14OMS is flush-mount with a 4 mm sensing distance and a brass housing with M12 connector. The E2AS12KN08WPB12MOMS is non-flush with 8 mm sensing distance, stainless steel housing, and a 3-pin stranded wire termination. Both are 17 mm hex body, 200 mA NO output, IP67/IP69K.

Will this sensor drop into a panel specified for the E2AM12KS04M1B14OMS without rewiring?

No — the E2AS12KN08WPB12MOMS uses a 3-pin stranded wire termination, while the flush sibling has a 4-pin M12 connector. Also, non-flush mounting requires different standoff or bracket geometry. The 17 mm hex body and 200 mA NO output are compatible, but wiring and mechanical fit differ.

MPN
E2AS12KN08WPB12MOMS
