Flush-Mount M18 Inductive Sensor for Washdown Zones

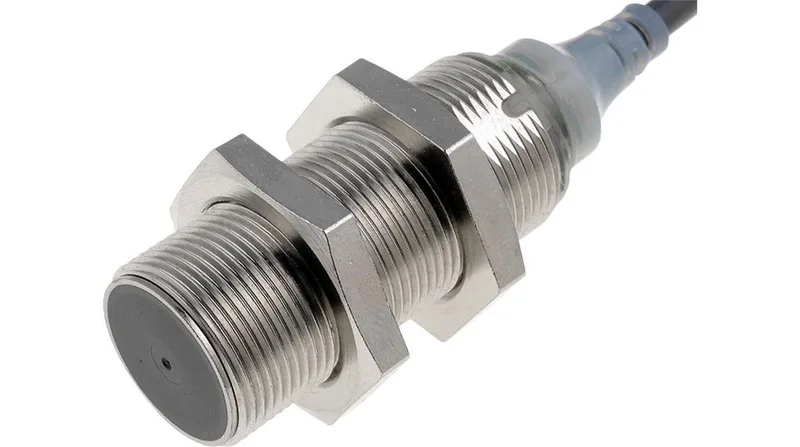

The Omron E2AS18KS08WPB12MOMS is an M18 flush-mount inductive sensor from the E2A series, rated for 8 mm sensing distance at 500 Hz switching frequency. Its stainless steel housing and IP67 / IP69K protection rating make it a direct fit for high-pressure washdown environments, such as food and beverage processing lines where corrosion resistance is critical. The NO output switches a 200 mA load across a 10–32 VDC supply with a 500 Hz repeat rate, adequate for position sensing on fast conveyor or indexing tables.
How It Differs from the M12 Connectorized Sibling (E2AM12KS04M1B14OMS)
Compared to the E2AM12KS04M1B14OMS, this M18 sensor offers double the sensing distance (8 mm vs 4 mm) at half the switching frequency (500 Hz vs 1 kHz). The housing is stainless steel versus brass, and the termination is a prewired 3-pin stranded cable rather than a M12 connector, which affects replacement labor and wiring style. The larger M18 body and flush-mount hole pattern (24 mm square cross-section) will not drop into a panel designed for the M12 form factor (17 mm square) without adapter or rework.
