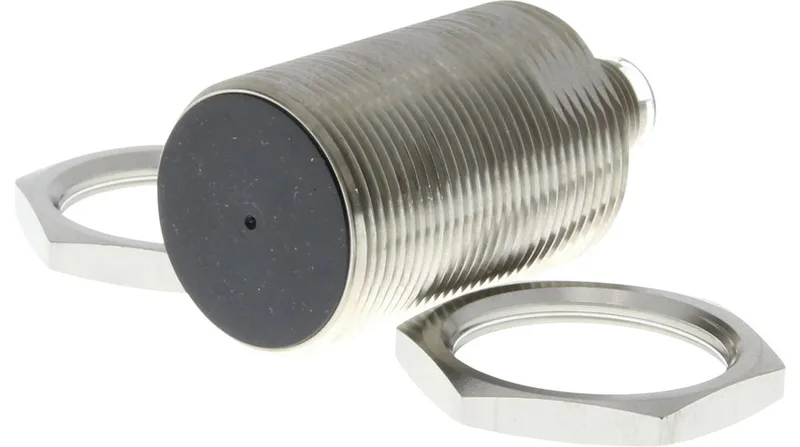

Omron E2AS30KS15M1B1 — inductive proximity sensor from the E2A series, M30 thread, flush-mount body. Delivers a 15 mm nominal sensing range with a normally-open output. Terminated via a standard 4-pin M12 connector. Operates on 10–32 VDC, draws 10 mA from the supply, and switches loads up to 200 mA. The 10 % repeat accuracy is typical for this class — if the application needs tighter positioning, factor that figure in. Stainless steel housing rated IP67 and IP69K — holds up to high-pressure, high-temp washdown. Fits food, beverage, or chemical processing lines where standard plastic-barrel sensors would degrade.
Omron E2AS30KS15M1B1 Inductive Sensor, 15 mm, IP69K
MPNE2AS30KS15M1B1
Omron E2A series, M30 inductive proximity sensor, flush mount, 15 mm sensing distance, NO, M12 connector, stainless steel, IP67/IP69K.
$30.10Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E2A |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 15 mm |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, max. | 32 V |
| Operating voltage, min. | 10 V |
| Termination type | Connector, M12, 4-Pin |
Output
| Parameter | Value |
|---|---|
| Load current | 200 mA |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Flush Mount |
| Length | 58 mm |
| Housing material | Stainless Steel |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| IP protection rating | IP67;IP69K |
Product details
Frequently asked questions
What is the width and height of E2AS30KS15M1B1?
Width and height are both 36 mm.
What is the maximum sensing distance?
15 mm, with a repeat accuracy of ±10 %.
MPN
E2AS30KS15M1B1
