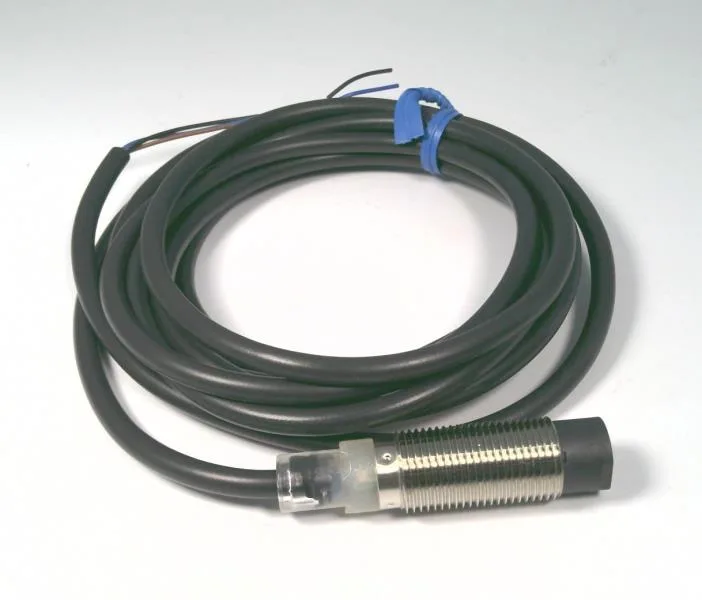

Omron E2B Series, E2B-M12KN08-WP-B1 2M, Inductive Proximity Sensor, Unshielded, 8mm, PNP, Normally Open, 2m PVC Cable, 12mm Diameter Brass Housing.
| Parameter | Value |
|---|---|
| Sensing distance | 8mm sensing distance |
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
| Parameter | Value |
|---|---|
| Shield | Unshielded |
| Weight | 0.08 kgs |
| Housing size | 12 mm diameter |
| Barrel length | Short body |
| Connection type | Pre-wired, PVC |
| Power source and output | PNP |
| Housing shape and material | Cylindrical, metric thread, brass |
The Omron E2B-M12KN08-WP-B1 2M is an unshielded inductive proximity sensor with an 8mm sensing distance, PNP normally open output, and a 2-meter PVC cable. It uses a 12mm diameter brass cylindrical housing with metric thread, short body design, and is pre-wired for quick installation.
Mounts in a 12 mm tapped hole; brass barrel with metric thread accepts standard locking nuts. Wire as a standard PNP three-wire: brown to supply, blue to common, black to input.
It is unshielded (non-shielded), meaning the sensing face is not enclosed by a metal shield. This provides a longer sensing range but requires care with surrounding metal.
Alternative models and sibling configurations in the same Omron series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
