Omron E2B-M12KS04-M1-C1

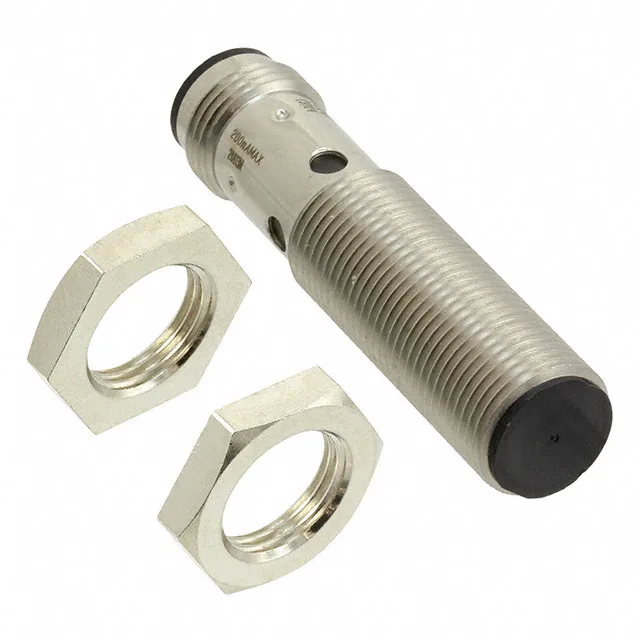

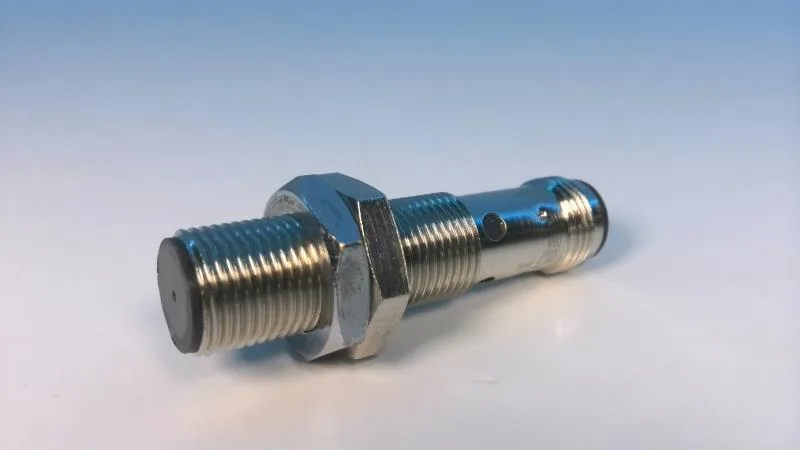

Omron E2B-M12KS04-M1-C1 Inductive Sensor, M12, 4mm, NPN-NO

MPN E2B-M12KS04-M1-C1

Omron E2B-M12KS04-M1-C1 inductive proximity sensor, shielded, M12 threaded cylindrical, 4 mm sensing distance, NPN-NO 3-wire, connector termination, IP67.

$8.26 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

E2B-M12KS04-M1-C1 specifications
ParameterValue
SeriesE2B
Output signalNPN-NO, 3-Wire
Sensor typeInductive
Supply voltage10 V to 30 V
IP ratingIP67
Sensing distance0.157" (4 mm)
Temp operating max70 °C
Temp operating min-25 °C
PackageBulk

Product details

The Omron E2B-M12KS04-M1-C1 is a shielded inductive proximity sensor on an M12 threaded cylindrical body, delivering a 4 mm sensing distance via a three-wire NPN-NO output. The connector termination keeps field wiring fast, and the IP67 rating allows washdown exposure — a standard profile for part-present sensing on pick-and-place, conveyor, or packaging machinery.

Panel-fit memo vs. peer E2B-M12LS04-WP-B2 2M

If your BOM was built around the E2B-M12LS04-WP-B2 2M, note that sensor is a PNP-NC variant with a 2-meter cable termination. The output logic and termination both differ, so swapping into an existing cabinet without rewiring or changing the connector interface isn't possible. Keep the NPN-NO order if the PLC input card expects sinking logic.

Threaded M12 body with a 1 kHz response frequency. Shielded construction allows flush mounting in metal — no derating on the 4 mm nominal sensing distance when embedded. Supply voltage 10-30 V, operating temperature -25°C to 70°C. The connector mates with a standard M12 3-pin female cordset (not included). Verify the free-wheeling diode polarity if driving an inductive load downstream.
