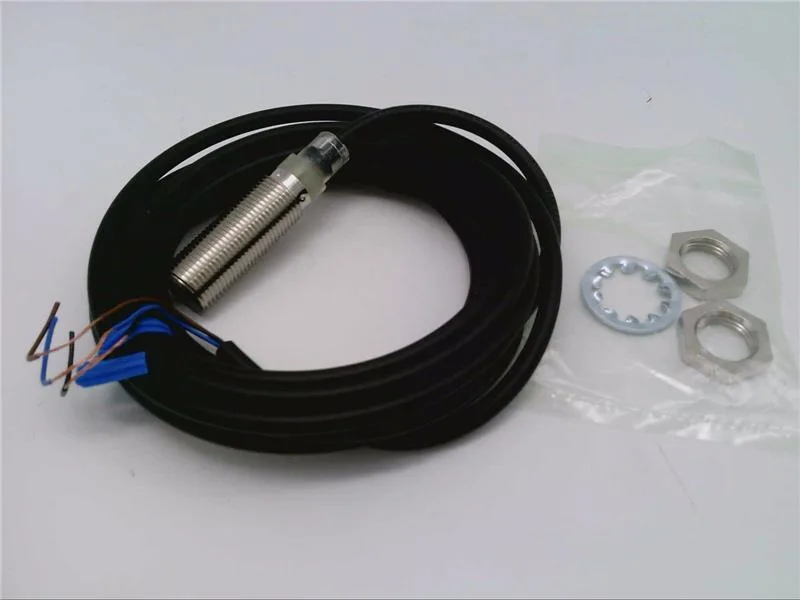

Omron E2B-M12KS04-WP-C2 2M is a shielded M12 inductive proximity sensor from the E2B series, housed in a cylindrical brass barrel with metric thread. It delivers a 4 mm sensing distance into an NPN normally closed output, pre-wired with a 2 m PVC cable. The short-body design fits standard M12 mounting holes. The NPN NC output is fixed — no programmability — so verify your PLC input polarity before fitting. The shielded construction reduces side detection, giving you only forward sensing through the face.
Omron E2B-M12KS04-WP-C2 2M M12 Shielded Proximity Sensor, NP
MPNE2B-M12KS04-WP-C2 2M
Omron E2B series, M12 shielded inductive proximity sensor, NPN normally closed, 4 mm sensing, 2 m PVC cable, brass barrel.
$8.26Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 4mm sensing distance |
Output
| Parameter | Value |
|---|---|
| Operation mode | Normally closed |
Mechanical
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
Other specifications
| Parameter | Value |
|---|---|
| Shield | Shielded |
| Weight | 0.00 kgs |
| Housing size | 12 mm diameter |
| Barrel length | Short body |
| Connection type | Pre-wired, PVC |
| Power source and output | NPN |
| Housing shape and material | Cylindrical, metric thread, brass |
Product details
MPN
E2B-M12KS04-WP-C2 2M
